Overview
After research, the PoE switch developed in accordance with the IEEE802.3aT and IEEE802.3af standards, the port output power can reach 25-30W.

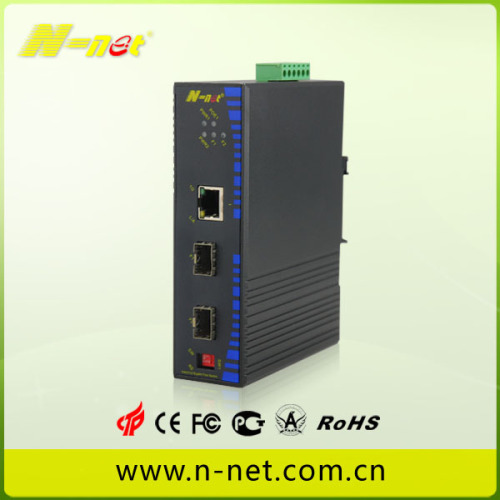

NT-IN322BF Industrial Gigabit Ethernet POE Switch series is an Industrial gigabit redundancy switch with dual fiber port redundancy, providing 2-port 10/100/1000BASE-TX Ethernet ports and additional two 100/ 1000Base-FX fiber ports.
In layman's terms, the PoE switch is a switch that supports network cable power supply. The function can also supply power to the network terminal at the same time.
Rigorous industrial design makes it stable and reliable with basic protection, as well as flexible enough for Ethernet expansion in harsh industrial environments.
PoE industrial switching enhanced network management industrial Ethernet switch, supports 1-24 PoE and 10 / 100M Ethernet composite ports (RJ45), 2 Gigabit SFP fiber ports, 2 power backup inputs and 1 relay alarm output.
When the main fiber broke down, NT-IN322BF Industrial 10/100/1000M Ethernet switch can switch to redundant fiber within 1ms.
The product adopts the independently developed MaxRing ring network technology (<20ms when the network failure is self-healing).
NT-IN322BF Industrial Gigabit Ethernet POE Switch series is either rack-mountable with DIN rail or panel mounted in cabinet for easy installation.
The user can easily set up a redundant ring network to increase network reliability.
Wide range of working temperature, power supply backup, IP40 protection, LED indicators and compact design, all these make NT-IN322BF Industrial 10/100/1000M Ethernet switch a perfect solution for special industrial application site.
In addition, it also supports SNMPv3, IEEE802.1X, HTTPS, and SSH. Network security. This product complies with FCC and CE standards, and meets the industrial level 4 design requirements.
NT-IN322BF-AT (AF) Industrial Gigabit Ethernet Switch series is the POE version of NT-IN322BF with two POE Ethernet ports, powering POE IP camera, AP and IP phone over Ethernet cable.
The wide operating temperature of -40 ～ + 75 ℃ can meet the requirements of various industrial sites, and has been widely used in power, water conservancy, rail transportation and other fields
NT-IN322BF-AT (AF) Industrial Gigabit Ethernet Fiber Switch supports IEEE802.3at with 25.5W output, compatible with IEEE802.3af.
Features
- Dual fiber port redundancy available with DIP switch
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Protocol supported: IEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z
- 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE
- 10/100/1000Base-TX can automatically identify the direct line and cross-line, is compatible with various cards,
- switches, HUB and other Ethernet devices
- Take store-and-forward mechanism to avoid packet loss and error frames
- Provide four independent 10M/100Mbps/1000Mbps self-adaptive twisted pair ports; realize Ethernet port
- redundancy and multiple users access.
- This Industrial Network Switch Support up to 1536 bytes packet.
- This Industrial Switch Support full-duplex flow control / half-duplex back pressure mode
- 12V--48V DC or 24V AC power supply input, redundant power and reverse polarity protection
- -40 to 80℃ operating temperature to meet a variety of complex environment
- IP40 standard protection housing.
- Supports ESD protection at Ethernet port and EFT protection.
- Easy installation, DIN rail or panel mountable.
- Dual fiber multi mode, single mode and WDM single mode fiber compatible.
- This Industrial Gigabit Ethernet POE Switch Support POE power supply up to 25.5W (optional)
- 12 Gbps back plane bandwidth, 1 k MAC address automatic learning and 512kb internal cache for data buffer
Specification
|
Parameter |
Specification |
|
Design Level |
Industrial IP40 design standards |
|
Access mode |
10/100/1000Mbps |
|
Protocols |
IEEE802.3 10Base-T,IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX,IEEE802.3x Flow Control.IEEE802.3at PSE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:500m Single fiber single mode: 20/40/60/80/100km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m EIA 568A/B |
|
Port |
2 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B 2 optical ports: Multi-mode :SC/FC/LC/ST(50/125, 62.5/125μm) Single mode : SC/FC/LC/ST (9/125μm) |
|
Conversion |
Store and Forward |
|
MAC |
1K |
|
Buffer space |
512Kb |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Time-delay |
Store and Forward: max. 9.6μs |
|
BER |
<10-9 |
|
MTBF |
50,000 hours |
|
LED indicator |
Power Supply : PWR 1,PWR 2 POE at UTP port: POE1, POE2 Fiber Port: F1,F2 |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
<5W (without PSE function) |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Parameter |
Specification |
|
Operating temperature |
-40~80℃ |
|
Storage Temperature |
-40~80℃ |
|
Dimension |
140mm(D)×110mm(W)×40mm(H) |
|
|
|
Certification
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Green product |
RoHS |
