10-100 PoE Industrial Ethernet-to-fiber Converter

Overview

With the advancement of network technology, many occasions will require fiber optic transceivers for long-distance transmission, so that now there are many foreign and domestic fiber optic transceiver manufacturers, and the product line is also very rich.

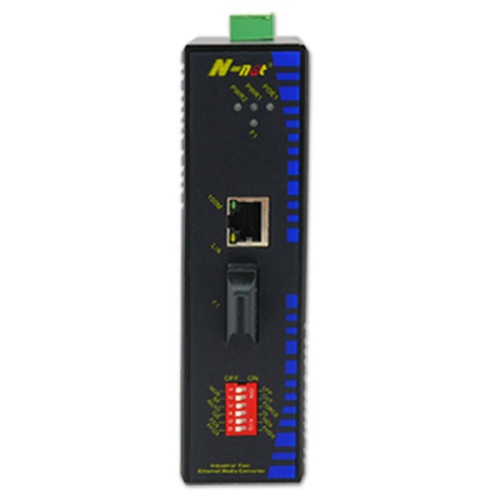

The N-net NT-IN111 Industrial Fast POE Media Converter series is 10/100Base-TX to 100Base-FX Industrial Media Converter.

The transceivers are all electrical to optical network structures.

It will extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.

Variety of types and models of single-mode fiber transceivers
NT-IN111 Industrial Media Converter series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

The development of optical fiber networks has become an inevitable trend.

It accepts an integrated power supply with a wide range of voltages for worldwide operation. It can also be equipped dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Therefore, enterprises now directly use optical fiber as a transmission medium to build a backbone network during the construction of their own networks, and many companies have also upgraded their original networks based on business needs.

NT-IN111 Industrial Media Converter series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration.

However, due to capital, manpower or time considerations, many enterprise users are in urgent need of a cheap solution, which can not only reduce costs, but also allow the original equipment to get the maximum value.

With Data and Power over Ethernet from one unit, NT-IN111 Industrial Switch series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control,  IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. This 10-100 PoE Industrial Ethernet-to-fiber Converter uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
6. Support jumbo frame up to 9K(cut-through mode)
7. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
8. -40 To 80℃ operating temperature to meet various tough environments
9. IP40 protection standard housing
10. Power port and Ethernet port supports ESD protection and EFT protection
11. DIN rail and panel mounting for efficient usage
12. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
13. Support DIP switches for operation mode setting
14. Support POE power supply up to 25.5W(optional)

Specifications

Certification

Application

Dimension
