DIP industrial fast media converter

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 4 Days

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000pcs/day
Supply Ability:	5000pcs around 10-20 days
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE,FCC,ISO9001
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Yantian

Product Description

Overview

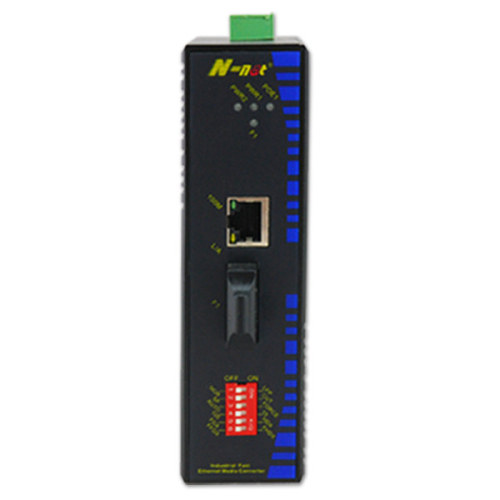

NT-IN111 Industrial Fast POE Media Converter series is 10/100Base-TX to 100Base-FX Industrial Fast Ethernet Media Converter. It will extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.

NT-IN111 Industrial Fast POE Media Converter series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space. It accepts an integrated power supply with a wide range of voltages for worldwide operation. It can also be equipped dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

NT-IN111 Industrial Media Converter series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN111 Industrial Fiber Switch series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

Built-in efficient switching core to implement flow control and reduce broadcast packets
Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
This Industrial Switch uses a store-and-forward mechanism to avoid packet loss and error frames
Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
Support jumbo frame up to 9K(cut-through mode)
12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
-40 To 80℃ operating temperature to meet various tough environments
IP40 protection standard housing
Power port and Ethernet port supports ESD protection and EFT protection
DIN rail and panel mounting for efficient usage
Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Support DIP switches for operation mode setting
Support POE power supply up to 25.5W(optional)

Specifications

Parameter	Specifications
Design Level	Industrial grade IP40 design standards
Access mode	10/100Mbps
Standard	IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
Wavelength	1310nm/1550nm
Transmission distance	Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m
Port	One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Address table	1K
Buffer space	Built in 288Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure

BER	<10-9
MTBF	50,000 hrs
LED indicator	Power Supply : PWR 1 , PWR 2 UTP Port: POE1, L/A,100M Fiber Port: F1
Power supply	Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power
Power consumption	<5W (without PSE function)
Operating temperature	-40~80ºC
Operating humidity	5%~90% non-condensing
Storage Temperature	-40~80ºC
Storage humidity	5%~90% non-condensing
Dimensions	140mm (W)×110mm (D)×40mm (H)
Weight

Certification

EMI	FCC Part 15, CISPR (EN55022) class A
EMC	FCC,CE
EMS	EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Green product	RoHS
