11-port unmanaged Industrial None-PoE switch
Your message must be between 20 to 2000 characters
Contact NowOverview

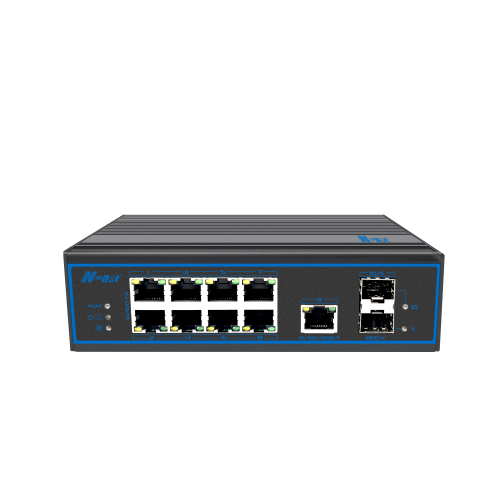

NIE8083GE is a 11-port Industrial unmanaged None-PoE switch that supports up to 8*10/100M ports,1* 10/100/1000M Ethernet ports and 2* 1000M SFP fiber ports. 8*10/100M ports , conforming to IEEE 802.3af/at standard.
It provides three modes, Extend, Default and VLAN, to adapt to various complex environments.
It has a high anti-interference ability, the product supports 6KV surge protection, and 8KV contact / 15KV air ESD protection. NIE8083GE supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 8*10/100M downlink ports,1*10/100/1000M Ethernet uplink ports and 2*1000M SFP ports.
Provides three modes of Extend, Default and VLAN to adapt to various complex environments.
Support 6KV surge protection, 8KV contact / 15KV air ESD protection.
Support working temperature -40℃~75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<5W. |
|
Downlink ports |
Ports 1~2 10/100Base-TX 90W 3~8 10/100Base-TX 30W |
|
Uplink ports |
Port 9 10/100/1000Base-T RJ45, Ports 10~11 1000 SFP slots |
|
Working mode |
Extend mode: ports 1 ~ 8 Extend up to 250m;1 ~ 8 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the upper port; restrain the network storm; turn off the flow control. |
|
Rlay alarm |
1 channel rlay alarm output for power off |
|
Cable and distance |
Use cat5e/6,100m max.(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
7.6Gbps |
|
Thoughput |
5.6Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink 9~11: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDsc/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact / 15KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165 mm×114 mm×50mm |
|
Material |
Aluminium |
|
Colour |
Black |
|
Net-weight |
1000g |
