Unmanaged Industrial Fast Meida Converter
- Payment Type:
- L/C, T/T, D/P, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Shanghai, Beijing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000pcs around 10-20 days |
| Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai,Beijing |
Overview

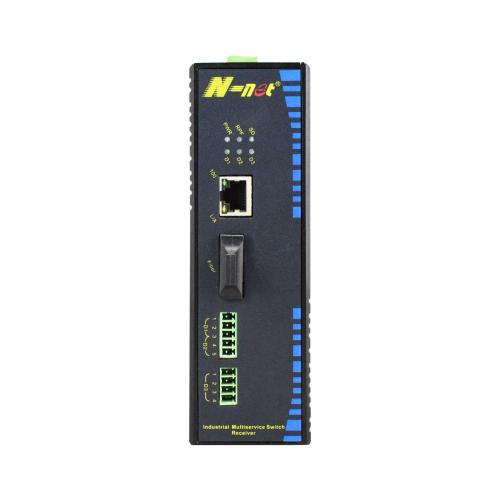

N-net NT-IN111D-2 is Unmanaged Industrial Fast Meida Converter with low-speed data. This product offers flexible and cost-effective fiber connectivity solutions to extend network connections.It not only a fast media converter, but also a fiber mode. In other words, it not only can transmit Ethernet signal but also low-spped data such as RS-485/RS232/RS422, and the Ethernet signal and the low-spped data are transmitted in different channels. This makes the trasmission more stable and fluent. NT-IN111D Unmanaged Industrial Fast Meida Converter with low-speed data can install in control cabinet by adopting optional way of DIN-RIAL or Wall mount. It is a compact product, supporting wide working temperature, redundant power input, IP40 protection, LED indicator light, being a best choice for the industrial special application and a reliable solution for your industrial Ethernet connections.
Features
1. Procotols: IEEE802.3/u, 10Base-T.100Base-TX
2. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
3. Take cut-through and forward technology, efficiently reducing the time-delay on network.
4. This Industrial Meida Converter with low-speed data Support Max up to 11K Bytes packet transmission
5. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
6. Support 3 low-speed data port, each can set as a separated RS232,RS485 or contact closure type.
7. Low-speed data passage adopt Time Division Multiplexing transmit, that makes low delay and easy apply without occupy IP address.
8. Low-speed data port support 0-115200bps speed
9. Low-speed data port support multi protection from lightning, surge, overvoltage and ESD
10. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
11. Support remote power off detection and indication
12. -40 To 80℃ operating temperature to meet a variety of complex environments
13. IP40 protection standard housing
14. Power port and Ethernet port supports ESD protection and EFT protection
15. DIN rail and panel mounting for efficient usage
16. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Certification
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Green product |
RoHS |

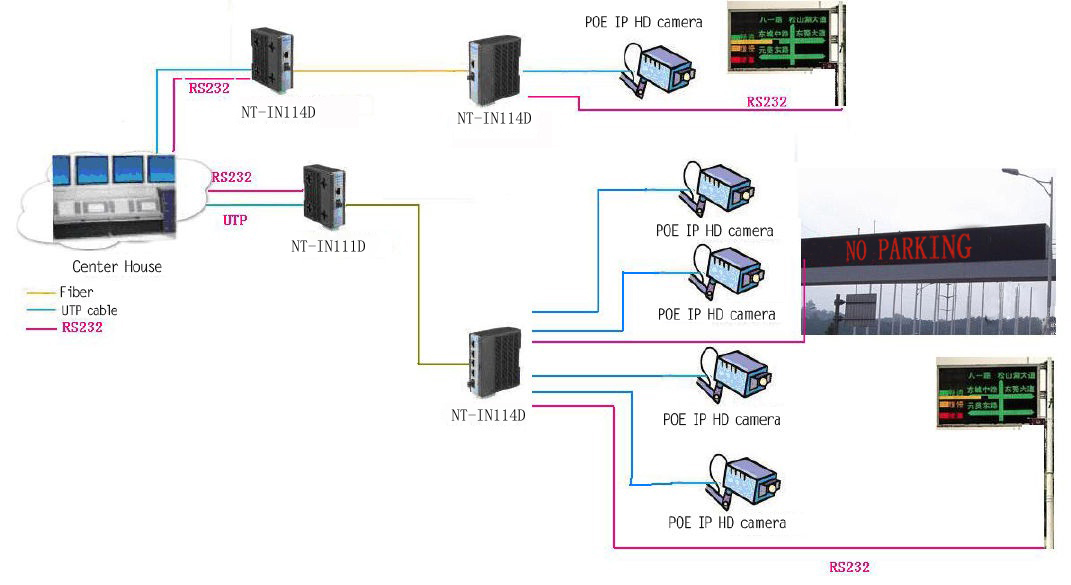

Application
Packging
