Industrial 8 port fast ethernet switch

Overview

This protocol was launched by Schneider, which embeds Modbus frames into TCP frames in a very simple way, combining Modbus with Ethernet and TCP / IP to become Modbus TCP / IP.

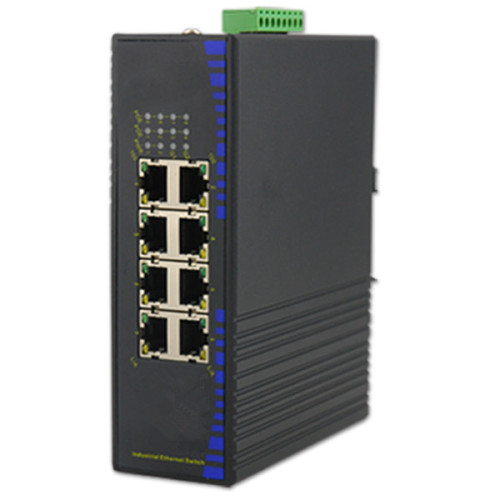

NT-IN108 series is an Industrial Switch, supporting eight 10/100BASE-T ports.

This is a connection-oriented way, and every call requires a response.

NT-IN108 Industrial Ethernet Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

This call / answer mechanism and Modbus master / slave mechanism cooperate with each other to make switched Ethernet highly deterministic, using TCP / IP The agreement can make the user interface more friendly through the form of a web page.

NT-IN108-4POE Industrial Fast Ethernet Switch series can support 4 ports POE function (Optional), powering PD like HD IP Camera, wireless AP, IP phone and so on.

Use the web browser to view the operation of the internal equipment of the corporate network.

Our Industrial Ethernet Switch is compliant with IEEE802.3af/ at, max 25.5W POE output.

Schneider has registered port 502 for Mod-bus, so that real-time data can be embedded into web pages, and by embedding a web server in the device, a web browser can be used as the device's operating terminal.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Protocol: IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices.
4. This Industrial Network Switch  uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support 8 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
6. Support jumbo frame up to 1600Bytes
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
9. -40 To 80℃ operating temperature to meet a variety of complex environments
10. IP40 protection standard housing
11. Power port and Ethernet port supports ESD protection and EFT protection
12. DIN rail and panel mounting for efficient usage
13. Support POE output up to 25.5W (optional)
14. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
