Industrial Ethernet Switch Fast

Overview

(3) The cost of software and hardware is low. Since Ethernet technology is very mature, the hardware and software supporting Ethernet are highly valued and widely supported by manufacturers.

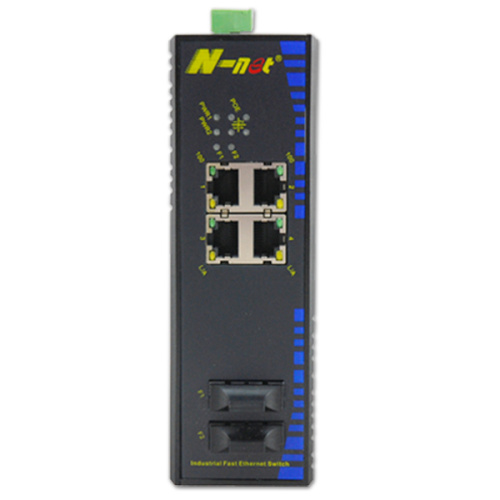

NT-IN124 is Industrial Fast Ethernet Switch with 6 ports. It supports 4 port 10/100BASE-T and 2 port 100Base-X.

There are a variety of software development environments and hardware equipment for users to choose.

It is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

(4) The communication rate is high. With the expansion of the scale and complexity of enterprise information systems, the demand for information volume is also increasing.

Meanwhile,It can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP, IP phone and so on.

Sometimes the transmission of audio and video data is even required. The current communication rate of Ethernet is 10M 100M Fast Ethernet has been widely used, Gigabit Ethernet technology has gradually matured, 10G Ethernet is also being studied, and its speed is much faster than the field bus.

Our Industrial Ethernet Switch support IEEE802.3at, 25.5W output.

(5) The potential for sustainable development is great. In this era of rapidly changing information, the survival and development of enterprises will rely heavily on a fast and effective communication management network, and the development of information technology and communication technology will be more rapid and more The maturity guarantees the continuous development of Ethernet technology.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
4. This Network Switch uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support 4 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
6. Support jumbo frame up to 1600Bytes
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
9. -40 To 80℃ operating temperature to meet a variety of complex environments
10. IP40 protection standard housing
11. Power port and Ethernet port supports ESD protection and EFT protection
12. DIN rail and panel mounting for efficient usage
13. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
14. This Industrial Switch Support POE power supply up to 25.5W (optional)
15. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
