industrial fast Ethernet switch

Overview

      Industrial Ethernet is a powerful area and unit network based on IEEE 802.3 (Ethernet).

      NT-IN118 Industrial Fast Ethernet Switch series is 10/100Base-TX to 100Base-FX Industrial Fast Ethernet Media Converter with single fiber port and 2 copper ports.Industrial Ethernet provides a way to seamlessly integrate into the new multimedia world. Intranet, extranet, and the Internet provide a wide range of applications that not only have entered today's office field, but can also be applied to production and process automation. The converters are able to extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.Following the successful operation of 10M baud rate Ethernet, the 100M baud rate Fast Ethernet (Fast Ethernet, in compliance with IEEE 802.3u standard) with switching functions, full duplex and adaptive has also been successfully running for many years.

      NT-IN118 Industrial Fast Ethernet Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.The performance of Ethernet depends on the needs of users. Universal compatibility allows users to seamlessly upgrade to new technologies. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

      NT-IN118 Industrial Switch series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN118 Industrial Fiber Switch series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX.IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.IEEE802.3x Flow Control. IEEE802.3at 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
3. This Industrial Network Switch uses a store-and-forward mechanism to avoid packet loss and error frames
4. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
5. Support jumbo frame up to 1552K(store-forward mode)
6. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
7. -40 To 80℃ operating temperature to meet a variety of complex environments
8. IP40 protection standard housing
9. Power port and Ethernet port supports ESD protection and EFT protection
10. DIN rail and panel mounting for efficient usage
11. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
12. Support POE power supply up to 25.5W(optional)

Specifications

Certification

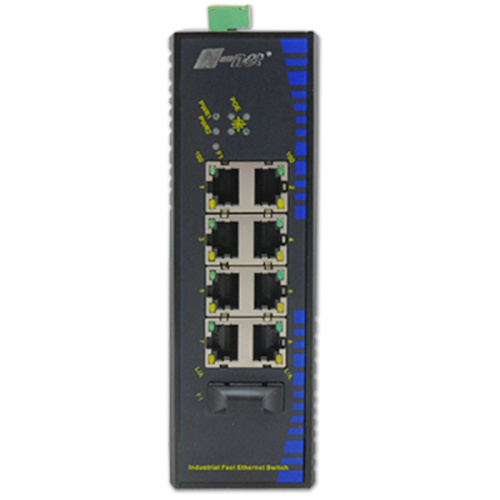

Product Picture
