3 ports industrial PoE switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Transportation:
- Ocean, Land, Air
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air |
| Port: | China,Shenzhen |
Overview
It is a 3-port industrial PoE switch that supports up to 1*10/100M 30W PD, 1*10/100M 30W PSE downlink port, 1*100M SFP port. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
It has the characteristics of reliable work, strong and durable, high performance and so on. It can be used in security network video monitoring system, network engineering and other occasions.
Supports relay alarm for power off, network broken, PoE off;
6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 1*10/100M 30W PD, 1*10/100M 30W PSE downlink port, 1*100M SFP port ;
Supports relay alarm for power off, network broken, PoE off;
6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Supports working temperature -40℃～75℃.
Specifications
Parameter
Specifications
Power supply
Powered by power adaptor
Range of voltage
DC 48~57V
Consumption
Self consumption<5W
Downlink ports
Ports 1: 10/100Base-TX 30W PD ;
Ports 2: 10/100Base-TX 30W PSE ;
Uplink ports
Port 3: 100Base-FX SFP
Relay alarm
Relay alarm for power off, network broken, PoE off;
Cable and distance
Use cat5e/6,100m max
Standard
IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric
0.6 Gbps
Though put
0.446 Mpps
Buffer
1M
MAC address table
8K
Indicator
Uplink3: Green LEDs indicate Link/Act
Downlink 1~2: On RJ45 green LEDs indicate Link/Act
Yellow LEDs indicate PoE
Protection
Surge: 6KV, standard: IEC61000-4-5
ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature
-40℃~75℃
Storage temperature
-40℃~85℃
Humidity
0~95%(No condensation)
Dimension(L×W×H)
101 mm×65 mm×36mm
Material
Aluminium alloy
Colour
Black
Net-weight
300g

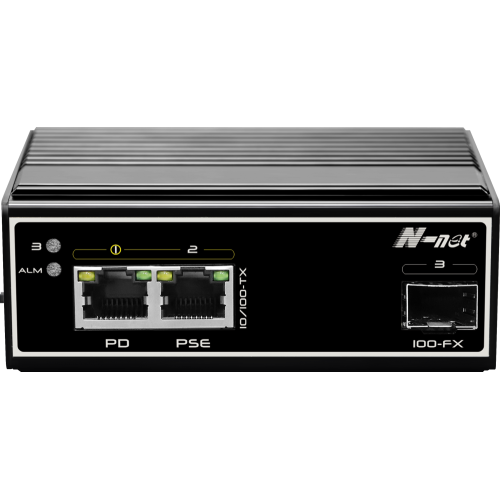

Panel diagram
Application
Dimensions
Order information
Model
Description
NIE6021PDE
With 1*10/100M 30W PD, 1*10/100M 30W PSE downlink ports, 1*100M SFP port;
2*DC48-57V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network broken and PoE off.
