7 ports Industrial PoE Switch
Your message must be between 20 to 2000 characters
Contact NowOverview
Switching technology allows shared and dedicated LAN segments to adjust bandwidth to alleviate bottlenecks in the flow of information between LANs.

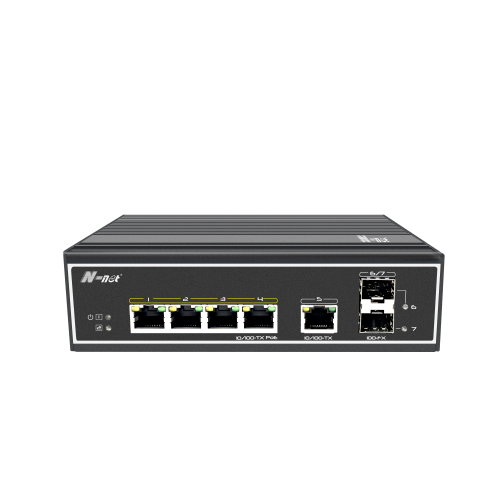

The NIE6043PE is a 7-port, industrial PoE switch that supports up to 4 *10/100M PoE downlink ports, 1*10/100M uplink ports and 2*100M SFP sports. 4*10/100M ports support PoE+, conforming to IEEE 802.3af/at standard.
There are already exchange products of Ethernet, Fast Ethernet, FDDI and ATM technologies.
It provides three modes, Extend, Default and VLAN, rich network management characteristics, adapt to variety complex environments.
Similar to traditional bridges, switches provide many network interconnection functions.
It supports the PoE auto-check function, which is specially designed to solve the problems of equipment frozen.The switch can economically divide the network into small conflicting domains, providing higher bandwidth for each workstation. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
The transparency of the protocol makes the switch directly installed in a multi-protocol network with simple software configuration.
It has the characteristics of reliable work, strong and durable, high cost performance and so on. It can be used in security network video monitoring system, network engineering and other occasions.
Features
- With 4*10/100M PoE downlink ports,1*10/100M uplink ports, and 2*100M SFP ports;
- Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
- Support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
- Support 6KV surge protection, 6KV contact / 8KV air ESD protection;
- ²Support working temperature -30℃~65℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~4 10/100Base-TX 30W PoE RJ45(IEEE802.3af/at) |
|
Uplink ports |
5 10/100Base-TX; Ports 6~7 100 SFP ports. |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Extend mode: ports 1 ~ 4 Extend up to 250m;1 ~ 4 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports 1 ~ 4 are isolated from each other and can only communicate with the upper port; restrain the network storm; turn off the flow control. |
|
Cable and distance |
Use cat5e/6,100m max(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
1.2Gbps |
|
Though put |
1.04Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink1~4: On RJ45 yellow and green LEDs indicate Link/Act Downlink 5~7: port 5 yellow and green LED indicate Link/Act,port 6~7 green LEDs indicate Link/Act |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-30℃~65℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165mm×115 mm×50mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
500g |
