full gigabit Industrial Unmanaged PoE Switch
Your message must be between 20 to 2000 characters
Contact NowOverview
The switch can be divided into a WAN switch and a LAN switch according to different working positions.

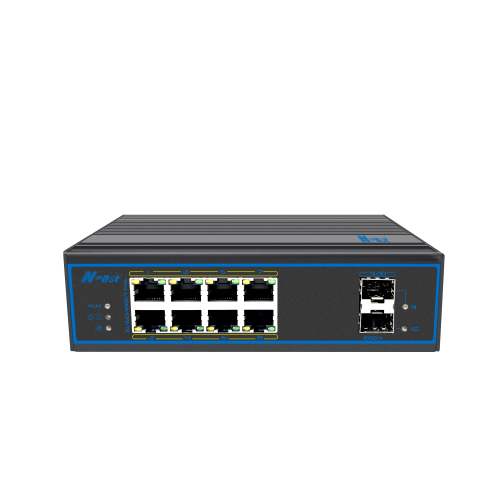

NIE8082PG is a 10-port full gigabit industrial unmanaged PoE switch that supports up to 8*10/100/1000M PoE ports, 2* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
A wide area switch is a device that completes the information exchange function in a communication system, and it is applied at the data link layer.
NIE8082PG provides two modes, Default and VLAN, to adapt to various complex environments.The switch has multiple ports, and each port has a bridge function, which can be connected to a local area network or a high-performance server or workstation. At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. In fact, switches are sometimes referred to as multi-port bridges.It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
A network switch is an equipment that expands the network and can provide more connection ports in the sub-network to connect more computers.
NIE8082PG has a high anti-interference ability, the product supports 6KV surge protection, 8KV contact /15KV air ESD protection.
NIE8082PG supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
- With 8*10/100/1000M PoE downlink ports,2*1000M SFP ports;
- Provides two modes of Default and VLAN to adapt to various complex environments;
- Support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
- Support relay alarm for power off, network broken, PoE off ;
- 6KV surge protection, 8KV contact /15KV air ESD protection;
- Support working temperature -40℃~75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<15W |
|
Downlink ports |
Ports 1~8 10/100/1000Base-T PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at) |
|
Uplink ports |
Ports 9~10 1000M SFP slots |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the upper port; restrain the network storm; turn off the flow control. |
|
Cable and distance |
Use cat5e/6,100m max(Extend mode max, 250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
20Gbps |
|
Though put |
14.88Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink 9~10: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165 mm×114 mm×50mm |
|
Material |
Aluminium |
|
Colour |
Black |
|
Net-weight |
1000g |
