Industrial-grade 4Port PoE 10/100M Ethernet Switch

Overview

Wiring method
The same wiring method on both sides is called flat connection, and the different wiring method on both sides is called twist connection.

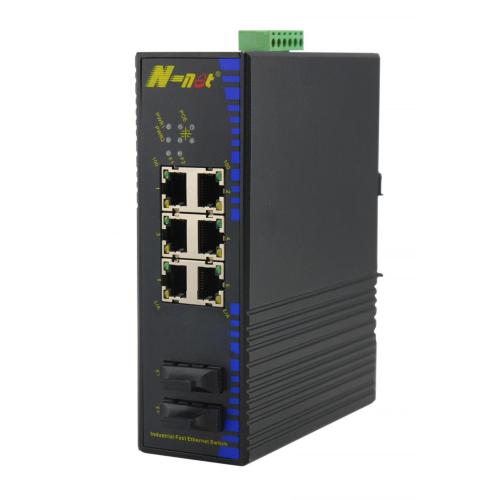

The N-net NT-IN126-4POE is a Industrial Fast Ethernet POE Switch. It supports 6 port 10/100BASE-T and 2 port 100Base-X.

The connection between different devices uses flat wiring; the same device connection uses twisted wiring.

NT-IN126-4POE Industrial Fast Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

Use flat wiring when connecting computers, routers to hubs and switches.
This is because of the 4 lines in the network cable, one pair is the input and the other pair is the output. The input should correspond to the output.

NT-IN126-4POE Industrial Fast Ethernet Switch series can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP.IP phone and so on. Our Industrial Switch support IEEE802.3at, 25.5W output.

If you connect 1 and 3 and 2 and 6, it is equivalent to sending your own output to your own input.
This can make the network card into a working state and prevent the empty interface from shutting down, which affects the operation of some programs. [2]

It supports in dual fiber single mode.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard::IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.
3. IEEE802.3x Flow Control. IEEE802.3at
4. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
5. This Industrial fiber Switch uses a store-and-forward mechanism to avoid packet loss and error frames
6. Support 6 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
7. Support jumbo frame up to 1600Bytes
8. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
9. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
10. -40 To 85℃ operating temperature to meet a variety of complex environments
11. IP40 protection standard housing
12. Power port and Ethernet port supports ESD protection and EFT protection
13. DIN rail and panel mounting for efficient usage
14. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
15. Support POE power supply up to 25.5W (optional)
16. Provide up to 4K MAC address entries and built in 1.25 Mb RAM

Specifications

Certification
