RS485/232/422 Industrial Fast Ethernet PoE Media Converter

Overview

VLAN editing
Virtual Lan is a virtual logical network. The switch can be divided into multiple logical networks through VLAN settings.
This isolates the broadcast domain. Switches with three-layer modules can implement routing between VLANs.

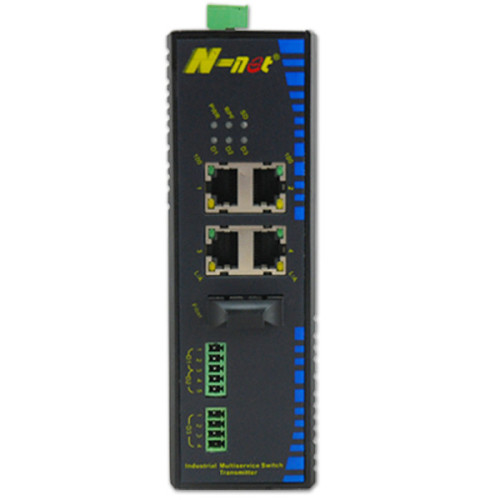

The N-net NT-IN114D Industrial Fast Ethernet POE Switch series is Industrial switch equipping 4 10/100M UTP port with low-speed data port.

(1) Port mode
There are two modes of switch ports, access and trunk. The access port is used to connect to the computer, and between the switches

It provides 4 10/100Base-T ports, 3 low-speed data port and 1100FX port. With strictly industrial design, it is fundamental guarantee for stability and practicability to flexible extends transmitting distance of the Ethernet and low speed data in the extreme industrial environment.

The connection should be trunk.
The default VLAN of the switch port is VLAN1, which works in access mode.

Apply NT-IN114D Industrial Fast Ethernet Switch equipping low-speed data port with NT-IN111D RS485/232/422 Industrial Fast Ethernet PoE Media Converter, the buffering of heavy traffic burst, rate smoothing of network service and remote transmission of low-speed data can perfectly resolve, having the leading feature advantage in this field.

The access port does not include the VLAN ID when sending and receiving data. Ports with the same VLAN number are in the same broadcast domain.
When the trunk port sends and receives data, it contains the VLAN ID. Trunk is also called trunk, and can be set to allow multiple VLANs to pass.

NT-IN114D Industrial Fiber Switch can install in control cabinet by adopting optional way of DIN-RIAL or Wall mount. It is a compact product, supporting wide working temperature, redundant power input, IP40 protection, LED indicator light, being a best choice for the industrial special application and a reliable solution for your industrial Ethernet connection.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3/u, 10Base-T, 100BASE-TX, IEEE802.3af, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. This Industrial Ethernet Switch uses a store-and-forward mechanism to avoid packet loss and error frames
5. Provide 4 independent 10/100M Base-TX ports to UTP redundant and multi user access
6. Support Max up to 1552Bytes packet transmission
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. Support 3 low-speed data port, each can set as a separated RS232,RS485 or contact closure type.
9. Low-speed data passage adopt Time Division Multiplexing transmit, that makes low delay and easy apply without occupy IP address.
10. Low-speed data port support 0-115200bps speed
11. Low-speed data port support multi protection from lightning, surge, overvoltage and ESD
12. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
13. Support remote power off detection and indication
14. -40 To 80℃ operating temperature to meet a variety of complex environments
15. IP40 protection standard housing
16. Power port and Ethernet port supports ESD protection and EFT protection
17. DIN rail and panel mounting for efficient usage
18. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
19. Support POE power supply up to 25.5W for single port
20. 7Gbps Non-blocking switching bandwidth line speed, 2K MAC address automatic learning and 16Mb Internal cache
