Industrial fast hybrid POE switch

Overview

Load balancing
There are two ways of load balancing between channel ports, forwarding based on source MAC and forwarding based on destination MAC.
scr-mac: Data frames with the same source MAC address are forwarded using the same port.

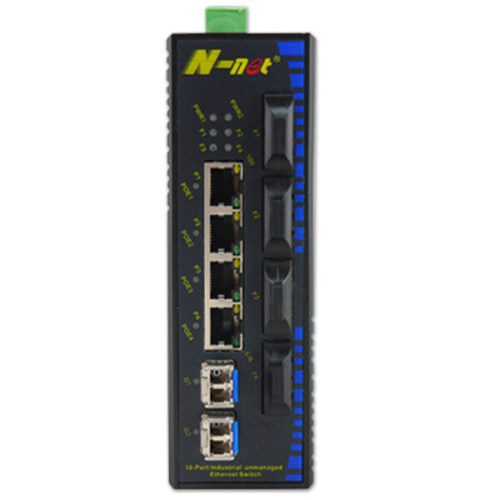

NT-IN1442GF Industrial Fast Ethernet POE switch series are 10-port industrial fast hybrid POE switch with 4 100Base-FX ports and 4 100Base-TX ports which also has 2 Gigabit Ethernet 1000Base-FX ports, which are ideal for applications that require high-bandwidth data upload transmission.

dst-mac: Data frames with the same destination MAC address are forwarded on the same port. [3]
Four-layer technology

NT-IN1442GF Industrial Fast Ethernet POE switch series accept 12~48VDC or 24VAC redundant power inputs, with rugged IP40 grade metal housing, DIN-Rail mounting or wall mounting, and high level EMI/EMC capability.

The transmission volume of audio, video, data and other information in the network system is full of occupied bandwidth.

NT-IN1442GF Industrial fast hybrid POE switch series provide an operating temperature range of -40℃ to 80℃. All of these features make the switches ideal for applications such as video surveillance, tolling system, wireless access and factory automatic.

We have to provide differentiated services for these data flows to allow delay-sensitive and important data to pass first.

NT-IN1442GF Industrial Fiber Switch series complied with IEEE 802.3at High Power over Ethernet technology (optional).

This has to be considered. The fourth layer of exchange to meet the needs of policy-based scheduling, QoS (Quality of Service) and security services.

It is backward compatible with 802.3af PSE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN1442GF Industrial Switch series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Protocol: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3z 1000Base-X, IEEE802.3at PSE, IEEE802.3af PSE
3. Supports 2 gigabit SFP slots for uplink, 4 10/100M copper ports and 4 100M fiber ports
4. Automatically identify the direct line and cross-line, compatible with Various NICs, switches, HUB and other Ethernet devices
5. It uses a store-and-forward mechanism to avoid packet loss and error frames
6. This Industrial Fast Ethernet POE switch Support full-duplex flow control / half-duplex back pressure mode
7. Support jumbo frame up to 1536 Byte
8. Ideal for any complex network environment with 3Mb data buffer and 8.8G non-blocking switch fabric
9. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
10. -40 To 80 ℃ operating temperature to meet a variety of complex environments
11. IP40 protection standard housing
12. Support ESD and EFT protection at power input port and Ethernet port
13. DIN rail and wall mounting for easy installation
14. Models with dual-fiber multi-mode/ single-mode and single-fiber single-mode available, meeting different needs of users
15. This Industrial Fast Ethernet Switch Support POE power supply up to 25.5W(optional)
