Overview
Wiring standard
Star Ethernet is connected by twisted-pair cable. The twisted-pair cable is 8-core, divided into four groups.
The 8-core twisted pair uses only 4 cores: 1, 2, 3, and 6.

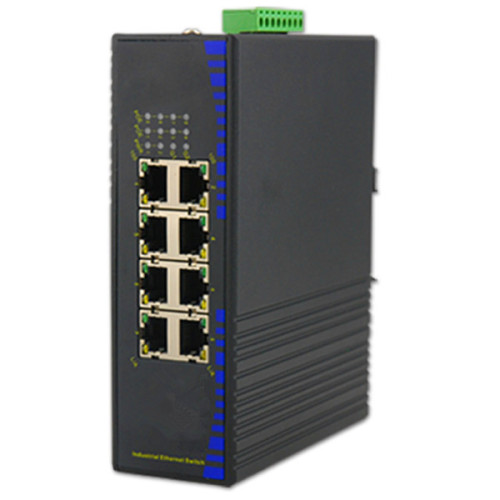

NT-IN108 Industrial Fast Ethernet POE Switch series is an full RJ45 port industrial 10/100M switch with 8 ports, supporting eight 10/100BASE-T ports.
There are two common wiring methods:
568B wiring specification: white orange orange white green blue white blue green white brown brown
1 2 3 4 5 6 7 8
NT-IN108 Industrial Fast Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.
568A wiring specification: white green green white orange blue white blue orange white brown brown
3 6 14 5 2 7 8
NT-IN108-4POE Industrial Fiber Switch series can support 4 ports POE function (Optional), powering PD like HD IP Camera, wireless AP, IP phone and so on. Our Industrial Ethernet Switch is compliant with IEEE802.3af/ at, max 25.5W POE output.
Swap 1 and 3 of 568B and 2 and 6 to get 568A.
Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Protocol: IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
- 10/100Base-TX can automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices.
- This Industrial Ethernet Switch uses a store-and-forward mechanism to avoid packet loss and error frames
- Support 8 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
- Support jumbo frame up to 1600Bytes
- Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
- 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
- -40 To 80℃ operating temperature to meet a variety of complex environments
- IP40 protection standard housing
- Power port and Ethernet port supports ESD protection and EFT protection
- DIN rail and panel mounting for efficient usage
- Support POE output up to 25.5W (optional)
- Provide up to 4K MAC address entries and built in 1.25 Mb RAM
Specifications
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at |
|
Transmission distance |
Category-5 twisted pairs: 100m |
|
Port |
6 RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Conversion means |
Store and Forward mode |
|
Address table |
4K |
|
Buffer space |
1.25 Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
store-and-forward: 9.6us, cut-through: 0.9us |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
POE1 ( POE1 power on/off), POE2 ( POE2 power on /off), POE3 ( POE3 power on/off), POE4 ( POE4 power on/off), (1~6) UTP Port: L/A ,100 POW1 (POW1 power on/off), POW2 (POW2 power on/off) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
<5W (without PSE function) |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Operating temperature |
-40~80℃ |
|
Storage Temperature |
-40~80℃ |
|
Dimensions |
155mm×125mm×50mm (W×D×H) |
|
Weight |
0.75kg |
Certification
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
Application
Dimensions
