Industrial hybrid power over ethernet switch

Overview

Layer 3 switch
Generally, ordinary switches only work on the data link layer, and routers work on the network layer. The powerful three-layer switch can work at the data link layer and network layer at the same time, and forward data packets according to the MAC address or IP address.

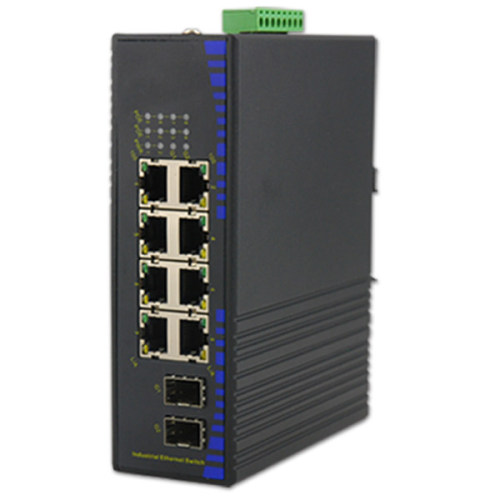

NT-IN1082GF Industrial Fast Ethernet POE switch series is 10-port industrial Ethernet unmanaged switch, providing 2 Gigabit Ethernet 1000Base-X ports and up to 8 100Base-TX ports. Up to 3Mb large volume buffer makes ideal for applications that require high-bandwidth data transmission.

However, it should be noted that the three-layer switch cannot completely replace the router, because it is mainly used to implement Vlan communication on two different subnets, rather than a complicated path selection for data transmission.

NT-IN1082GF Industrial Fast Ethernet POE switch series provides 12~48Vdc or 24Vac redundant power inputs, with rugged IP30 grade metal housing, DIN-Rail mounting or wall mounting, and high level EMI/EMC capability.

Network management function
The degree of management supported by a switch reflects the manageability and operability of the device. The switch with network management function can monitor the traffic of each port, set the speed of each port, and close / open the port connection.

NT-IN1082GF series is functional under a wide range of temperature from -40℃ to 80℃. All of these features make the switches ideal for applications that require high-bandwidth transmission for uplink, such as video surveillance, tolling system, wireless access and factory automatic.

By monitoring the switch ports, it is easy to distinguish network traffic and quickly define network faults, which improves network manageability.

NT-IN1082GF Industrial switch series complies with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PSE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN1082GF Industrial Ethernet Switch series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard:IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T. IEEE802.3x Flow Control. IEEE802.3z 1000Base-X. IEEE802.3at PSE. IEEE802.3af PSE
3. Supports 2 gigabit SFP slots for uplink and 8 10/100M copper ports
4. Automatically identify the direct line and cross-line, is compatible with Various NICs, switches, HUB and other Ethernet devices
5. This Industrial Fiber Switch uses a store-and-forward mechanism to avoid packet loss and error frames
6. Support full-duplex flow control / half-duplex back pressure mode
7. Support jumbo frame up to 1536 Byte
8. Ideal for any complex network environment with 3Mb data buffer and 8.8G non-blocking switch fabric
9. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
10. -40 To 80 ℃ operating temperature to meet a variety of complex environments
11. IP30 protection standard housing
12. Power port and Ethernet port supports ESD protection and EFT protection
13. DIN rail and wall mounting for efficient usage
14. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
15. Support POE power supply up to 25.5W(optional)
