full RJ45 port industrial fast switch

Overview

(4) VLAN sharing
If a VLAN is required to be accessed with other VLANs, you can set up VLAN sharing or primary and secondary VLANs.

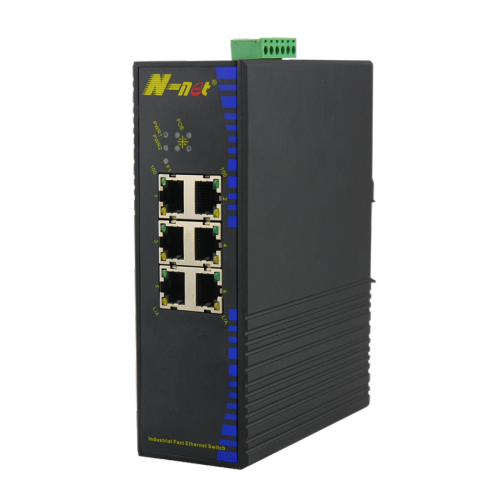

NT-IN106 is an Industrial Fast Ethernet POE switch, supporting six 10/100BASE-T ports.

The VLAN port in shared mode can become a member of multiple VLANs or belong to multiple VLANs at the same time.
In the main attached VLAN structure, the sub-VLAN and the main VLAN can access each other, and the ports between the sub-VLANs cannot access each other.

NT-IN106 Industrial Fast Ethernet POE switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

Different VLANs use different network addresses; the main VLAN and the sub-VLAN use the same network address in the attached VLAN.
Password recovery edit
The password recovery operation of the switch is to start the HyperTerminal first, hold down the mode key when the switch is powered on, let go after a few seconds, enter the ROM state, rename or delete the configuration file config.txt in nvram, and restart.

NT-IN106-AT (AF) Industrial Fast Ethernet Switch series can support 4 ports POE function (Optional). Without power and wires, can power supply for HD IP Camera, wireless AP, IP phone and so on.

The reference command is:
switch: rename flash: config.text flash: config.bak
switch: erase flash: config.text

Our POE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard::IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T. IEEE802.3x Flow Control. IEEE802.3at, 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
3. This Industrial Switch uses a store-and-forward mechanism to avoid packet loss and error frames
4. Support 6 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
5. Support jumbo frame up to 1600Bytes
6. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
7. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
8. -40 To 80℃ operating temperature to meet a variety of complex environments
9. IP40 protection standard housing
10. Power port and Ethernet port supports ESD protection and EFT protection
11. DIN rail and panel mounting for efficient usage
12. Support POE power supply up to 25.5W (optional)
13. Provide up to 4K MAC address entries and built in 1.25 Mb RAM

Specifications

Certification

Application

Dimensions
