Unmanaged Switch with 2 Fiber POE Port
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Yantian |

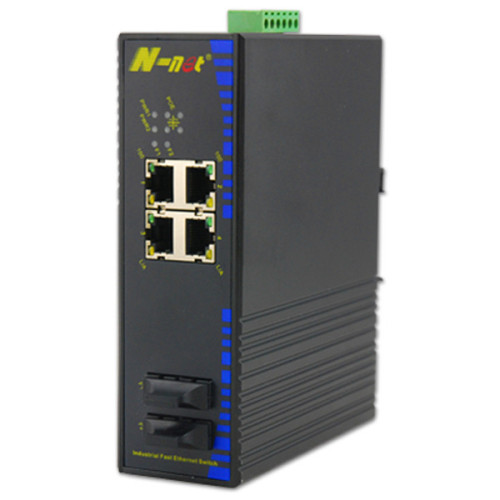

N-net Unmanaged 2 Fiber POE Switch
4. Host standby connection: The host standby connection provides a redundant connection for the port device, thereby effectively protecting the system in the event of a switch failure. This service allows the definition of the master and backup switches.
NT-IN124 is unmanaged 2 fiber POE switch with 6 ports. It supports 4 port 10/100BASE-T and 2 port 100Base-X.
They have the same configuration parameters as the virtual server definition. Since the Layer 4 switches share the same MAC address, the backup switch receives all the same data as the main unit.
NT-IN124 series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.
This enables the backup switch to monitor the communication content served by the main switch. The master switch continuously informs the backup switch of the fourth layer of relevant data, MAC data, and its power status. When the main switch fails, the backup switch will automatically take over without interrupting the conversation or connection.
NT-IN124 series can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP, IP phone and so on. Our POE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output.
Unmanaged 2 Fiber POE Switch Features
Built-in efficient switching core to implement flow control and reduce broadcast packets
Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
It uses a store-and-forward mechanism to avoid packet loss and error frames
Support 4 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
Support jumbo frame up to 1600Bytes
Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
-40 To 80℃ operating temperature to meet a variety of complex environments
IP40 protection standard housing
Power port and Ethernet port supports ESD protection and EFT protection
DIN rail and panel mounting for efficient usage
Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Support POE power supply up to 25.5W (optional)
Provide up to 4K MAC address entries and built in 1.25 Mb RAM
Unmanaged 2 Fiber POE Switch Specification
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m |
|
Port |
Four RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B Two optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward mode |
|
Address table |
4K |
|
Buffer space |
1.25 Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
store-and-forward:9.6us,cut-through:0.9us |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
POE1 ( POE1 power on/off), POE2 ( POE2 power on /off), POE3 ( POE3 power on/off), POE4 ( POE4 power on/off) POW1 (POW1 power on/off), POW2(POW2 power on/off) F1(F1 Link/transmission), F2(F2 Link/transmission) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
<5W (without PSE function) |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Operating temperature |
-40~80℃ |
|
Storage Temperature |
-40~80℃ |
|
Dimensions |
155mm×125mm×50mm (W×D×H) |
|
Certification |
|
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
Unmanaged 2 Fiber POE Switch Application
Unmanaged 2 Fiber POE Switch Dimension
