Industrial Fast Ethernet POE Switch Overview
(1) Bridge Protocol Data Unit: BPDU (Bridge Protocol Data Unit)
BPDU is a data unit for communication between spanning tree protocol switches and is used to determine roles.
NT-IN128 is a Industrial Fast Ethernet POE Switch with 10 ports. It supports 8 port 10/100BASE-T and 2 port 100Base-X.
(2) Bridge ID: Bridge ID
The identification number of the switch, which consists of priority and MAC address, priority 16 bits, MAC address 48 bits.
NT-IN128 Industrial Fast Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN Rail or panel mounting for efficient usage of cabinet space.
(3) Root bridge: Root bridge
The root bridge is defined as the switch with the smallest bridge number, and all ports of the root bridge will not be blocked.
NT-IN128-AT (AF) Industrial Fast Ethernet POE Switch series can support 4 ports POE function, providing power supply for HD IP Camera, wireless AP, IP phone and so on. Our Industrial Fast Ethernet POE Switch support up to IEEE802.3at, 25.5W PoE output.
(4) Root port: Root port
The port with the least cumulative cost from the non-root bridge to the root bridge is responsible for the communication interface between this bridge and the root bridge.
(5) Designated bridge: Designated bridge
The cumulative path to the root bridge in the network costs the smallest switch and is responsible for sending and receiving data on this network segment.
Industrial Fast Ethernet POE Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
- 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
- It uses a store-and-forward mechanism to avoid packet loss and error frames
- Support 8 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
- Support jumbo frame up to 1600Bytes
- Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
- 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
- -40 to 80℃ operating temperature to meet a variety of complex environments
- IP40 protection standard housing
- Power port and Ethernet port supports ESD protection and EFT protection
- DIN rail and panel mounting for efficient usage
- Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode available, expanding the needs of users
- Support POE power supply up to 25.5W (optional)
- Provide up to 4K MAC address entries and built in 1.25 Mb RAM
Industrial Fast Ethernet POE Switch Specifications:
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Single fiber single mode: 20/ 40/ 60/ 80/ 100km Dual-fiber single mode: 20/ 40/ 60/ 80/ 100/ 120km Category-5 twisted pairs: 100m |
|
Port |
Eight RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B Two optical port: Multi-mode :SC/ FC/ LC(50/125, 62.5/125μm) Single mode : SC/ FC/ LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward mode |
|
Address table |
4K |
|
Buffer space |
1.25 Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
store-and-forward:9.6us |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
POE1 ( POE1 power on/off), POE2 ( POE2 power on /off), POE3 ( POE3 power on/off), POE4 ( POE4 power on/off), (1~8) UTP Port: L/A ,100 PWR1(PWR1 power on/off), PWR2(PWR2 power on/off) F1(F1 Link/transmission), F2 (F2 Link/transmission) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/ 24VAC, 6-PIN Terminals, Redundant dual power |
|
Power consumption |
7W |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Operating temperature |
-40~80℃ |
|
Storage Temperature |
-40~85℃ |
|
Dimensions |
155mm×125mm×50mm (W×D×H) |
Industrial Fast Ethernet POE Switch Certification
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |

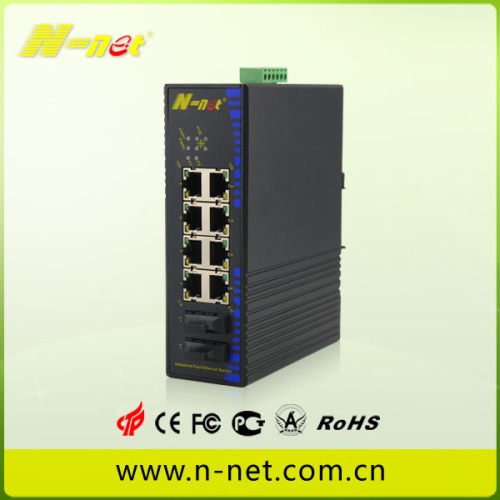

Industrial Fast Ethernet POE Switch Product Picture
