10/100/1000M Fiber Optic Media Converter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA, CPT
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 pcs per day |
| Supply Ability: | 5000 pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA,CPT |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | Shenzhen |

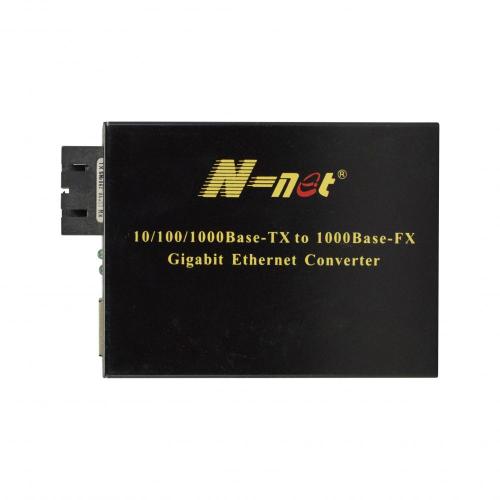

N-net 10/100/1000M Fiber Optic Media Converter
With the increasing demand for network management of equipment by operators, it is believed that the network management of fiber optic transceivers will become increasingly practical and intelligent.
The optical fiber transceiver breaks the 100-meter limitation of Ethernet cables in data transmission. Relying on high-performance switching chips and large-capacity buffers, while truly achieving non-blocking transmission switching performance, it also provides balanced traffic, isolation conflicts and Detect errors and other functions to ensure high security and stability during data transmission.
It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10BaseT/100BaseTX/1000BaseT, and 1000BaseSX, interconverting electrical signals of 10BaseT/100BaseTX/1000BaseT twisted pairs with optical signals of 1000BaseSX. It extends the transmission distance of network from 100m via copper cable to 500m via fiber optical cable. It supports transmission in multimode dual fiber, single mode dual fiber and single mode single fiber.
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
Multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) Single mode Dual-fiber: 20/40/60/80/100km |
| Port |
One RJ45 port: Connecting with STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode single fiber: SC/FC/LC(SFP) (9/125μm) |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator |
POWER (power supply), FX LINK (optical link action) TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M) TP ACT (TP cable packet forwarding action), FDX (TP full duplex operation) |
| Power supply | External: AC90~264V/DC100~380V input, 5V 2A output |
| Power consumption | Max. 5W |
| Operating temperature range | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperatures | -40~70ºC |
| Maintaining humidity range | 5% ~ 90% non-condensing |
| Dimensions | 71mm (W)×94mm (D)×26 mm (H) (external power supply) |
Fiber Optic To Ethernet Converter Packing
