Gigabit Internal Fiber Media Converter
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Yantian |

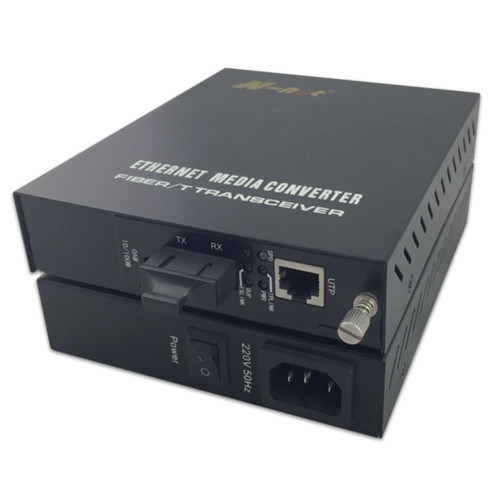

N-net Gigabit Internal Fiber Media Converter
PLL is very important for clock and data recovery (CDR). The PLL is driven by the input reference clock, so the reference clock input needs to meet strict electrical and jitter requirements.
NT-3011D/ NT-S3011D10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 550m via fiber optical cables. It supports transmission in multimode dual fiber.
Internal Single Fiber Media Converter Features
- Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
- 10/100/1000M media converter with SFP slot is available
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
- Supporting JUMBO frame max to 9K(optional)
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
- Options in multimode in dual fiber
1000M Single Mode Fiber Media Converter Application
Gigabit Internal Media Converter Specification
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
1310nmnm/1550nm |
|
Transmission distance |
Multimode Dual fiber: 550m Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Single mode, dual fiber: SC, FC or LC(SFP) (9/125μm) |
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
|
Power supply |
Internal: AC90~264V/DC-48V input |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
156 mm (L)×127 mm (W)×32 mm (H) (internal power supply) |
Internal Single Fiber Media Converter Application
