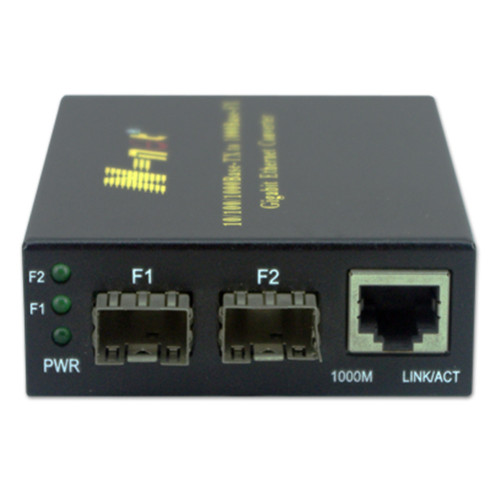

N-net External 10/100/1000M SFP Port Media Converter
In a chip, there are analog and digital signals at the same time, it is easy to produce power synchronization noise, ground bounce and signal crosstalk.
NT-G2100SFP Gigabit Fiber Ethernet Converter is a 3 port media converter With the 2-port redundant mode.10/100/1000M Media Converter provides less than 10ms redundancy of link for highly critical Ethernet applications.
And the higher data rate of the transceiver means that the non-ideal transmission line effect will make wiring more difficult. The copper wires in each layer will produce a "skin effect", and high-frequency signals glide across the surface of the conductor, increasing signal attenuation.
The redundant mode supports auto-recover function. If the destination port of a packet is link-down, Fiber Media Converter Gigabit forwards the packet to the other port of the backup pair.The SFP slot supports single-mode, multi-mode and WDM small-form factory type transceiver modules for various applications. The NT-G2100SFP is with high reliability and flexibility to extend the distance up to 2km, 20km or longer. Fiber Optic To Ethernet Converter depends on the 1000Base-FX SFP transceiver modules. The Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively.
Ethernet Media Converter Features
- Complies with IEEE 802.3 10Base-T Ethernet, IEEE802.3 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x flow control
- 2 ports 1000Base-SX/LX SFP Fiber optic, 1 port 10/100/1000Base-T RJ45
- Auto-Negotiation for 10/100 Base-TX Full-Duplex and 10/100 Base-TX Half-Duplex
- Support IEEE 802.3x Full-Duplex Flow-Control and Back pressure for Half-Duplex to eliminates packets loss
- Support Auto MDI/MDI-X function
- Support VLAN tag, Multicast pass through, and support the max packet length 1522 byte
- Store-and-Forward mechanism, and 3-port data auto-switching
Gigabit Media Converter Specifications
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x flow control |
|
Wavelength |
Vary on SFP fiber module |
|
Transmission distance |
SFP port: Vary on SFP fiber module Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: Connecting with STP/UTP category-5 twisted pairs, EIA568A/B Two SFP port slots: Vary on SFP fiber module |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
Switch mechanism |
Store-and-Forward |
|
LED indicator |
POWER (power supply), TP Speed (On:1000Mbps,Off:10/100Mbps) TP LINK/ACT , SD1(SFP Port 1 link/act LED), SD2(SFP Port 2 link/act LED) |
|
Power supply |
External: AC90~264V/DC100~380V input, 5V 2A output |
|
Power consumption |
Max. 5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
71mm (W)×94mm (D)×26 mm (H) (external power supply) |
