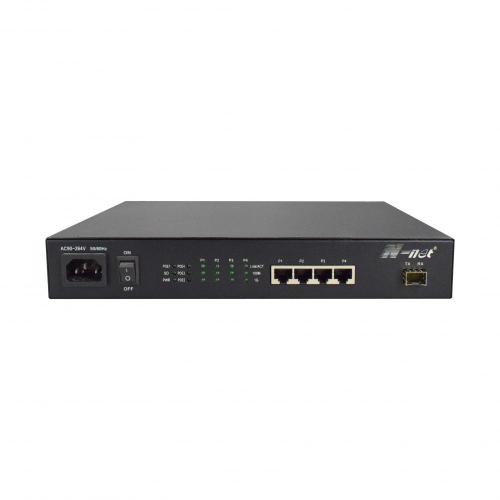

Ethernet Switch Managed Gigabit

N-net Ethernet Switch Managed Gigabit

The NT-MG1400 managed switch offers wire-speed packet transfer performance with 12Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control.Unmanaged switches use the embedded remote monitoring (RMON) standard for tracking traffic and sessions, which is effective in determining bottlenecks and blocking points in the network. This gigabit switch supports standard simple network management protocol(SNMP) and can be monitored via any standard-based management software.  etc.The software agent supports four RMON groups (history, statistics, alerts, and events) to enhance traffic management, monitoring, and analysis. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilizationThese features provide a cost-effective way to manage the device from the Internet whenever you are working or at home.Statistics are general network traffic statistics;History is the network traffic statistics in a certain time interval;Alarm can be given when the preset network parameter limit value is exceeded.Time stands for managing events.

Gigabit Managed Ethernet Switch Features

1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,
2. IEEE 802.3z 1000Base-SX/LX Ethernet standard
3. Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol
4. Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control(Full-Duplex)
5. 8K MAC address table, automatic source address learning and ageing
6. 12Gbps switch fabric, non-blocking switch architecture
7. 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
8. Supports Port-Based and 802.1Q VLAN function, up to 64 VLAN groups
9. Supports IEEE 802.1w Rapid-Spanning Tree protocol(RSTP)
10. Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4 trunk groups, Each trunk is maximum up to 6 ports
11. IGMP Snooping for multicast filtering, supports v1 and v2
12. Support DHCP option 60 and option 82
13. Multicast and Broadcast Storm Control as well as Flooding Control
14. Port Mirroring support for dedicated port monitoring
15. 802.1X Port-Base access control, RADIUS Server Authentication
16. Static MAC Address assigns destination MAC address at specifc port
17. Remote Web management interface
18. Firmware upgrade through Web interface
19. Cable Diagnostics technology
20. Supports SNMPv1 with RFC-1213/1573-Interface group and RMON Group 1 ( Statistics) SNMP Tr

Managed Gigabit Ethernet Switch Application

With 1gigabit fiber interfaces, to build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the various distances of fiber port are optional for customers. For security and applications, the 5 Gigabit ports can be configured with VLAN settings and connect to different units, offices, buildings, houses and departments. And NT-MG1500 is wide application in Europe FTTH market.

It is similar to NT-MG1400

4 Ports Network Switch Package
