Unmanaged PoE Auto-check switch
Overview

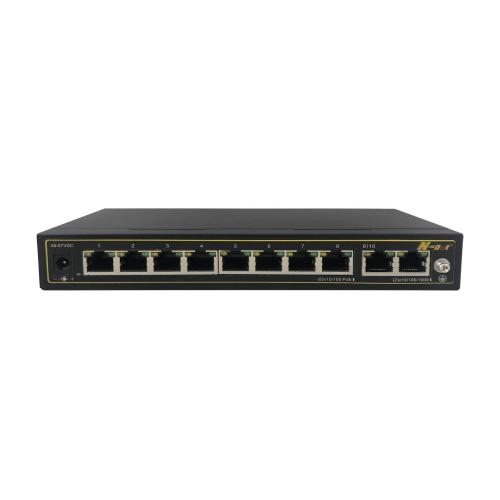

- NC2082GPE is a 10-port PoE unmanaged switch that supports up to 8 10/100M PoE ports and 2 10/100/1000M ports. 8 10/100M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W, the maximum whole machine power is 120W.
- NC2082GPE provides three modes, Extend, Default and VLAN, to adapt to various complex environments. At the same time, it supports the PoE auto-check function, which is specially designed to solve the problem of equipment frozen and restart the frozen equipment automatically, which greatly reduces the difficulty of project maintenance.
- NC2082GPE has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection.
- NC2082GPE supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W, PoE output max. 115W |
|
Downlink ports |
Ports 1~8 10/100Base-TX 30W PoE RJ45(IEEE 802.3af/at) |
|
Uplink ports |
Ports 9~10 10/100/1000Base-T RJ45 |
|
PoE ports |
Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max. |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Extend mode: ports 1 ~ 8 Extend up to 250m;1 ~ 8 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
|
1~8 PoE ports |
Support IEEE 802.3af/at, end-span, single port≦30W |
|
Cable and distance |
Use cat5e/6,100m max.(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
5.6Gbps |
|
Though put |
4.2Mpps |
|
Buffer |
4M |
|
MAC address table |
16K |
|
Indicator |
Power: 1 *red ; Uplink9, 10: On RJ45 green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
200mm×95mm×30mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
500g |
