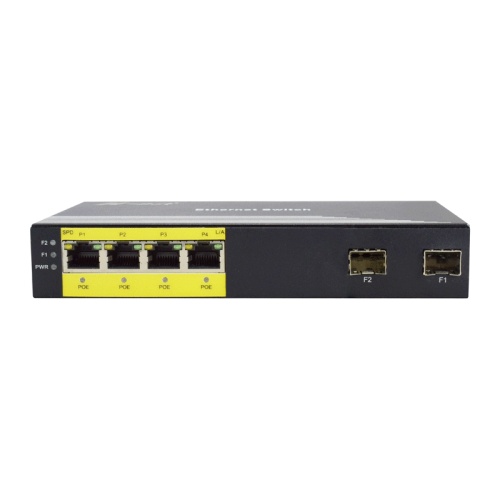

N-net Unmanaged Gigabit Switch with 4 POE Ports
N-net NT-G2400-AF4 poe switch is a cost-effective solution for small-scale CCTV monitoring support. There are 2 fiber uplink ports and 4 downlink ports with power over ethernet function that can provide power for PD devices. This gigabit poe switch enables users work under an inconvenient power extraction condition. As a gigabit ethernet poe switch, it's more helpful for reliable assurance for connection between the surveillance system and outside network where the four PoE+ ports can be used to their full potential.
POE Switch Gigabit Features
1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x Flow Control
IEEE802.3af PoE
3. 10/100/1000M copper ports automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Maximum of 9720 bytes Jumbo frame supported
7. 52V DC power input
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support PoE power supply up to maximum of 30W
Specifications
|
Item |
Unmanaged Gigabit POE Switch with 4 POE Outputs |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x Flow Control, IEEE802.3af PoE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode: 2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode: 20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Port |
4 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B 2 Fiber ports: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
4KB |
|
Buffer space |
Built in 1024Kb RAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
Power Supply: PWR (1~2)Fiber port: L/A (1~4)UTP Port: SPD, L/A, PoE |
|
Power supply |
Power Input Range: 52VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52V, 1.25A 65W |
|
Power consumption |
<5W |
|
PoE Power Pins |
RJ45: Mode A -- pins 1 and 2 for PoE Positive; 3 and 6 for PoE Negative Mode B -- pins 4 and 5 for PoE Positive; 7 and 8 for PoE Negative Note: Powering mode is only optional in production |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
170.50mm (W)×80.50mm (D)×30.00mm (H) |
|
Weight |
|
