Overview
With the widespread use of FPGAs, transceivers are integrated in FPGAs and become an effective method to solve the problem of device transmission speed.

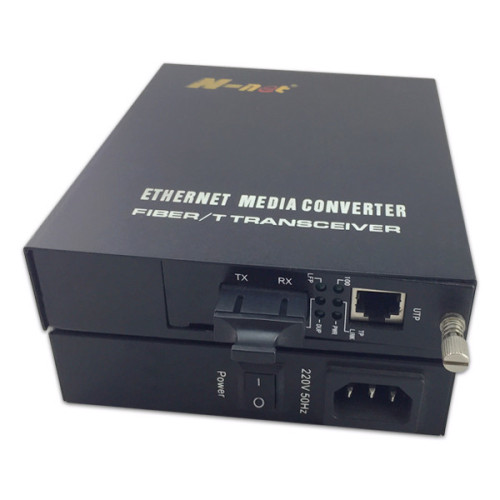

NT-1100I/NT-1100SI Ethernet media converter can interconvert electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120 km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in Multi-mode dual fiber or single mode dual fiber.
Features
10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Full-duplex and half-duplex auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting half /full-duplex of FX.
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission.
Supporting the transmission of 100Base-FX or STM-1, compatible with other devices
Supporting low-time lag transmission
Supporting the transmission of extra-long packets up to1600 bytes
Extremely low power consumption (less than 2W), reliable and stable performance
Options in single mode dual fiber or Multi-mode dual fiber.
Specifications
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow Control |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber Multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode Dual-fiber: SC or ST (50/125μm or 62.5/125μm) Single mode Dual-fiber: SC or FC (9/125μm) |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Buffer space |
Built in 128Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POER (power supply), FX LINK/ACT (optical link action) FDX (full duplex), TX LINK/ACT (TP cable link/action) TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
|
Power supply |
Internal: input AC90~264V/DC100~380V, output 5V1A |
|
Power consumption |
<40W (the chassis at full load), <2W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
140mm (W)×110mm (D)×30 mm (H) (internal power supply) |
Application
Order Information
|
NT-1100I |
10/100Base-T to 100Base-F, multi-mode, 2km, SC, standalone, internal power adaptor |
|
NT-1100SI-25 |
10/100Base-T to 100Base-F, single mode, 25km, SC, standalone, internal power adaptor |
|
NT-1100SI-40 |
10/100Base-T to 100Base-F, single mode, 40km, SC, standalone, internal power adaptor |
|
NT-1100SI-60 |
10/100Base-T to 100Base-F, single mode, 60km, SC, standalone, internal power adaptor |
|
NT-1100SI-80 |
10/100Base-T to 100Base-F, single mode, 80km, SC, standalone, internal power adaptor |
|
NT-1100SI-100 |
10/100Base-T to 100Base-F, single mode, 100km, SC, standalone, internal power adaptor |
|
NT-1100SI-120 |
10/100Base-T to 100Base-F, single mode, 120km, SC, standalone, internal power adaptor |
