Basic Info

Product Description

Overview

According to the network management, it can be divided into network management type optical fiber transceiver and non-network management type optical fiber transceiver.

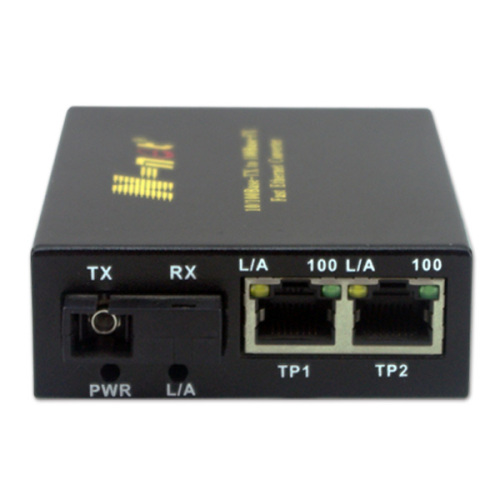

NT-1200 series are 10/100Mbps adaptive fast Ethernet Optical Media Converter, with built-in 2 ports 10M/100Mbps self-adaptive switch, converting the 2 independent 10Base-T or 100Base-TX twisted pair electrical signal with 100Base-FX optical signal.
With the development of the network in the direction of being operable and manageable, most operators hope that all equipment in their networks can be managed remotely, and fiber transceiver products, like switches and routers, are gradually developing in this direction.
Ethernet Media Converter 10/100Mbps extends the network transmission range from 100m, the limit of copper line, to 120Km (single mode full duplex).
Ethernet Media Converter 10/100Mbps supports two different types of network connection media, 10/100Base-TX and 100Base-FX.
By switching technique and storage & forwarding technique, Ethernet Media Converter 10/100Mbps realizes the data transmission between two network connection media.
Ethernet Media Converter 10/100Mbps supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode

Features

10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users
Supporting full-duplex and half-duplex and its auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting the transmission of extra-long packets up to 1552 bytes
Low power consumption, reliable and stable performance;
Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber

Specifications

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength	850nm/1310nm/1550nm
Transmission distance	Multi-mode Dual-fiber: 2 km; Single mode Dual-fiber: 20/40/60/80/100/120 km; Single mode Single fiber: 20/40/60/80/100/120 km Category-5 twisted pairs: 100m
Port	RJ45 port: Connecting with STP/UTP category-5 twisted pairs Optical port: Multi-mode: SC or ST (50, 62.5/125μm) Single mode: SC or FC (9/125μm) Single mode Single fiber: SC/FC (9/125μm)
Flow control	Full duplex: flow control; half duplex: back pressure
Error rate	<10-9
MTBF	100,000 hours
LED indicator	POWER (power supply); FX LINK/ACT (fiber link/action) FDX (FX full duplex), FX100 (fiber rate 100M)
Power supply	DC5V 1A (external)
Power consumption	3.5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	110mm(W)×82mm(D)×47mm(H) (external power supply)

Application

Ethernet Media Converter 10/100Mbps

10/100Mbpsa Unmanaged Fiber Media Converter

Order Information

NT-1200	10/100Base-T to 100Base-F, 2TP ports, multi-mode, 2km, SC, standalone, external power adaptor
NT-1200S-25	10/100Base-T to 100Base-F, 2TP ports,single mode, 25km, SC, standalone, external power adaptor
NT-1200S-40	10/100Base-T to 100Base-F, 2TP ports,single mode, 40km, SC, standalone, external power adaptor
NT-1200S-60	10/100Base-T to 100Base-F, 2TP ports,single mode, 60km, SC, standalone, external power adaptor
NT-1200S-80	10/100Base-T to 100Base-F, 2TP ports,single mode, 80km, SC, standalone,external power adaptorr
NT-1200S-100	10/100Base-T to 100Base-F, 2TP ports, single mode, 100km, SC, standalone, external power adaptor
NT-S1200-25	10/100Base-T to 100Base-F, 2TP ports, WDM(single fiber bi-direction), 25km, SC, standalone, external power adaptor
NT-S1200-40	10/100Base-T to 100Base-F, 2TP ports, WDM(single fiber bi-direction), 40km, SC, standalone, external power adaptor
NT-S1200-60	10/100Base-T to 100Base-F, 2TP ports, WDM(single fiber bi-direction), 60km, SC, standalone, external power adaptor
NT-S1200-80	10/100Base-T to 100Base-F, 2TP ports, WDM(single fiber bi-direction), 80km, SC, standalone, external power adaptor
NT-S1200-100	10/100Base-T to 100Base-F, 2TP ports, WDM(single fiber bi-direction), 100km, SC, standalone, external power adaptor
