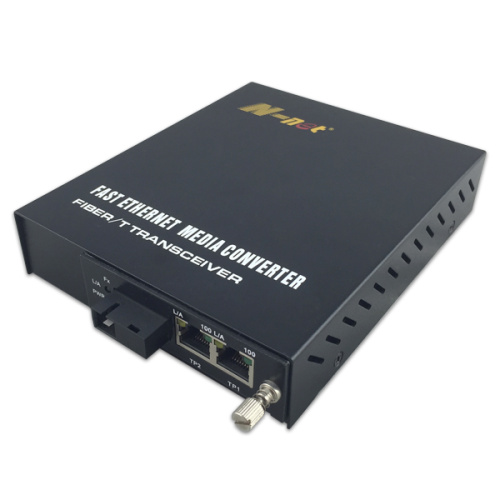

N-net 10/100M Internal Fiber Media Converter
With the continuous development of technology, it has become the current trend to replace the traditional parallel I / O technology with high-speed serial VO technology. NT-S1100D Media Converter is a new product used for optical transmission via high-speed Ethernet. Fiber Converter is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX and 100 Base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet work group users` needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network. The fastest parallel bus interface speed is 133 MB / s for ATA7. In 2003, the transmission rate provided by the SATA1.0 specification has reached 150 MB / s, and the theoretical speed of SATA3.0 has reached 600 MB / s. When the device works at high speed, the parallel bus is susceptible to interference and crosstalk, which makes the wiring quite complicated. The use of serial transceivers can simplify layout design and reduce the number of connectors. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, Fiber To Ethernet Media Converter is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and 10/100M Media Converter is an ideal type of facility to build broadband campus network.
Ethernet Converter Features
- 10/100Mbps auto-sensed, facilitating network upgrade.
- Built-in efficient switching core to implement flow control and reduce broadcast packets.
- Full-duplex and half-duplex auto-sensed.
- Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation.
- Supporting half /full-duplex of FX.
- Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission.
- Supporting the transmission of 100Base-Fx or STM-1, compatible with other devices.
- Supporting low-time lag transmission.
- Supporting the transmission of extra-long packets up to1600 bytes.
- Extremely low power consumption (less than 2W), reliable and stable performance.
- Options in single mode dual fiber or multi-mode dual fiber.
Small Fiber Media Converter Specifications
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow Control |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode Dual-fiber: SC or ST (50, 62.5/125μm) Single mode Dual-fiber: SC or FC (9/125μm) |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Buffer space |
Built in 128Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POER (power supply), FX LINK/ACT (optical link action) FDX (full duplex), TX LINK/ACT (TP cable link/action) TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
|
Power supply |
Internal: AC90~264V/DC100~380V input |
|
Power consumption |
<40W (the chassis at full load), <2W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
140 mm (W)×110 mm (D)×30 mm (H) (internal power supply) |
Fast Media Converter Application
Fiber To Ethernet Converter Order Information
|
NT-1100D |
10/100Base-T to 100Base-F, multi-mode, 2km, SC, standalone, internal power adaptor |
|
NT-1100SD-25 |
10/100Base-T to 100Base-F, single mode, 25km, SC, standalone, internal power adaptor |
|
NT-1100SD-40 |
10/100Base-T to 100Base-F, single mode, 40km, SC, standalone, internal power adaptor |
|
NT-1100SD-60 |
10/100Base-T to 100Base-F, single mode, 60km, SC, standalone, internal power adaptor |
|
NT-1100SD-80 |
10/100Base-T to 100Base-F, single mode, 80km, SC, standalone, internal power adaptor |
|
NT-1100SD-100 |
10/100Base-T to 100Base-F, single mode, 100km, SC, standalone, internal power adaptor |
|
NT-S1100D-120 |
10/100Base-T to 100Base-F, single mode, 120km, SC, standalone, internal power adaptor |
