Fast Unmanaged Fiber Network Switch

N-net Fast Unmanaged Fiber Network Switch

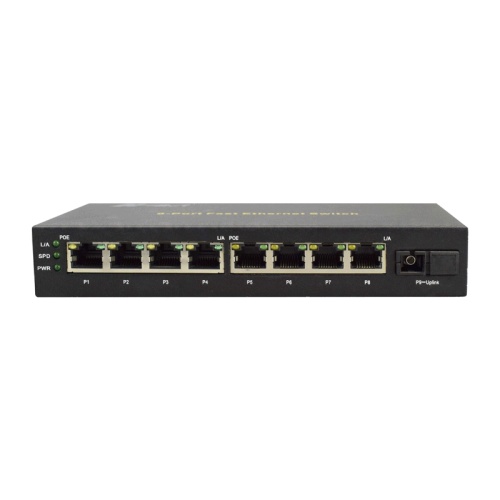

NT-1800S is a fast Ethernet switch with built-in 8 ports 10M/100Mbps self-adaptive switch, converting the 8 independent 10Base-T or 100Base-TX twisted pair electrical signal with 100Base-FX optical signal.  This fiber switch extends the network transmission range from 2km, the limit of copper line, to 120Km (single mode full duplex).  NT-1800S Ethernet switch supports two different types of network connection media, 10/100Base-TX and 100Base-FX. By switching technique and storage & forwarding technique and realizes the data transmission between two network connection media. It also supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode.

10/100M Network Switch Features

  1. 10/100Mbps auto-sensed, facilitating network upgrade

  2. Built-in efficient switching core to implement flow control and reduce broadcast packets

  3. Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users

  4. Supporting full-duplex and half-duplex and its auto-sensed

  5. Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

  6. Supporting the transmission of extra-long packets up to 1552 bytes

  7. Low power consumption, reliable and stable performance;

  8. Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber

10/100M Ethernet Switch Application

9-port Fast Switch Package
