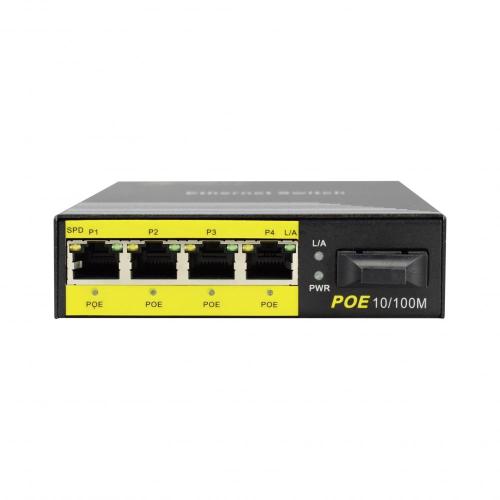

Fast 4 Ports Ethernet POE Switch

N-net Fast 4 Ports Ethernet PoE Switch

NT-1400-AF4, an Ethernet switch with 4 power oer Ethernet ports that provides (4) 10/100BASE-TX 802.3af/ at PoE copper ports and one uplink 10/100BASE-FX fiber port. This 4 ports poe switch supports 60-watt PoE budget to power up to 4 IEEE 802.3af (or 2 IEEE 802.3 at) compliant powered devices simultaneously. The PoE features make this Ethernet switch an efficient and cost-effective solution for SMB, SOHO or other similar fields where there is deployment of PoE network for the wireless access points, IP-based surveillance cameras or IP phones anywhere else.

Fast Ethernet Switch Features

1. 10/100Mbps auto-sensed, facilitating network upgrade
2. Built-in efficient switching core to implement flow control and reduce broadcast packets
3. Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users
4. Supporting full-duplex and half-duplex and its auto-sensed
5. Supporting Port-isolation and Port-mirror function with DIP switch (Optional)
6. Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
7. Supporting the transmission of extra-long packets up to 1536 bytes
8. 1K MAC Address: Auto-leaning and Auto-aging
9. Supporting Green Ethernet, Low power consumption, reliable and stable performance
10. Supporting electrostatic protection for Ethernet ports(Air:15KV, Contact:8KV)
11. Surge protection for TP port (CM:6KV, DM:4KV)
12. Options for single mode in dual fiber, multi-mode in dual fiber, single mode in single fiber and SFP transceiver
13. Options for SC/LC/FC/ST fiber connector
14. Supporting desk-top mounted and wall mounted
15. Support PoE power supply up to maximum of 30W for single port

10/100M 4 Ports PoE Switch Application

Network Switch Package
