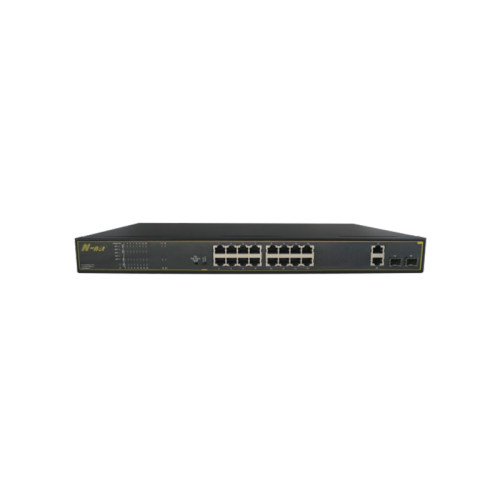

NC2164GPE is 20-port POE unmanaged switch series that supports up to 16*10/100M POE ports, 2*10/100/1000M ports and 2*1000M SFP ports. 16*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard , single port PoE power up to 30W. It provides three modes, Extend, Default and VLAN, to adapt to various complex environments. At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering .
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions .
This switch includes the NC2164GPE-300( 300W built-in power supply,270W PoE output ) ; NC2164GPE-200( 200W built-in power supply,190W PoE output )
Features
With 16*10/100M PoE ports, 2*10/100/1000M ports and 2*1000M SFP ports;
The maximum PoE power of single port is 30W;
It provides three modes of Extend, Default and VLAN to adapt to various complex environments;
Support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
Support PoE power indication, convenient to display POE power consumption;
Products support 6KV lightning protection,6KV contact / 8KV air ESD protection.
Support wall hanging and desktop placement.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Mains power supply,AC100~240V,50/60Hz |
|
Power consumption |
Self-comsumption<10W, |
|
Downlink ports |
Ports1~16 10/100Base-TX 30W PoE RJ45(IEEE802.3af/at PSE) |
|
Uplink ports |
17~18 ports: 10/100/1000 Base-TX 19~20 ports: 1000Base-X SFP slots |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Extend mode: ports 1~16Extend up to 250m;1~16 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports1~16 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
|
1~16 PoE ports |
IEEE802.3af/at,end-span, single port≤30W |
|
Cable and distance |
Use cat5e/6 100m max.(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
56Gbps |
|
Though put |
42Mpps |
|
Buffer |
4M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink 17~20:RJ45green LED indicate Link/Act Downlink1~16: RJ45 green LED indicate Link/Act,yellow LED indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD:6KV contact 8KV: air, standardIEC61000-4-2 |
|
Working temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
420 mm×285 mm×44mm |
|
Material |
Aluminium |
|
Colour |
Black |
|
Net-weight |
4kg |
