6-port unmanaged PoE Switch
Your message must be between 20 to 2000 characters
Contact NowOverview

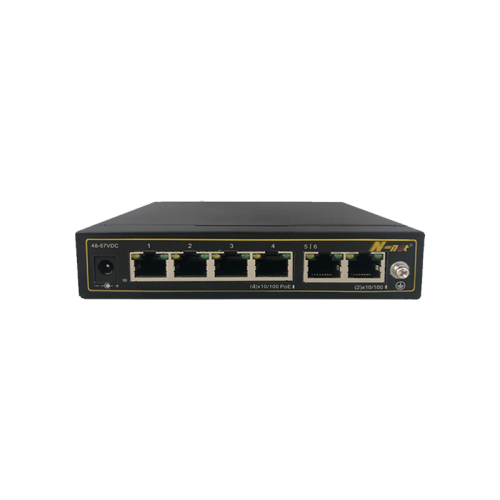

NC2042PE is a 6-port PoE unmanaged switch that supports up to 4 10/100M PoE ports and 2 10/100M uplink ports. 4 10/100M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W, the maximum whole machine power is 60W.
NC2042PE provides three modes, Extend, Default and VLAN, to adapt to various complex environments. At the same time, it supports the PoE auto-check function, which is specially designed to solve the problem of equipment frozen and restart the frozen equipment automatically, which greatly reduces the difficulty of project maintenance.
NC2042PE has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection. NC2042PE supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
-
With 4*10/100M PoE downlink ports and 2*100M uplink ports;
-
The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 60W ;
-
Provides three modes of Extend, Default and VLAN to adapt to various complex environments ;
-
It supports the PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
-
6KV surge protection, 6KV/8KV ESD protection.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W, PoE output max. 60W |
|
Downlink ports |
Ports 1~4 10/100Base-TX 30W PoE RJ45(IEEE 802.3af/at) |
|
Uplink ports |
Ports 5~6 10/100/1000Base-T RJ45 |
|
PoE ports |
Ports 1~4 support IEEE802.3af/at, end-span, 30W per port Max. |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Extend mode: ports 1 ~ 4 Extend up to 250m;1 ~ 4 ports are isolated from each other and can only communicate with the uplink ports; restrain the network storm; turn off the flow control. Default mode: normal switch mode. VLAN mode: ports 1 ~ 4 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
|
1~8 PoE ports |
Support IEEE 802.3af/at, end-span, single port≦30W |
|
Cable and distance |
Use cat5e/6 100m max.(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
1.2Gbps |
|
Though put |
0.9Mpps |
|
Buffer |
448K |
|
MAC address table |
1K |
|
Indicator |
Power: 1 *red ; Uplink5, 6: On RJ45 yellow and green LEDs indicate Link/Act Downlink 1~4: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
135mm x 80mm x 30mm |
|
Material |
Metal |
|
Color |
Black |
|
Net-weight |
340g |
