10-port PoE unmanaged switch

Overview

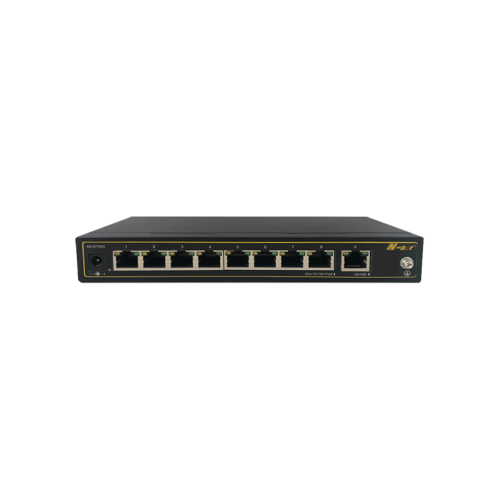

NC2081PE is a 10-port PoE unmanaged switch that supports up to 8 10/100M PoE ports and 1 10/100M port. 8 10/100M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W, the maximum whole machine power is 120W.

NC2081PE provides three modes, Extend, Default and VLAN, to adapt to various complex environments. The development of IEEE 802.3af has involved the efforts of many corporate experts, making the standard testable in various ways.At the same time, it supports the PoE auto-check function, which is specially designed to solve the problem of equipment frozen and restart the frozen equipment automatically, which greatly reduces the difficulty of project maintenance.The IEEE 802.3at standard was developed in 2005 and promulgated in 2009.The output power of 802.3at standard can reach 30W, and the usable power of the receiving end is 25.5w.

NC2081PE has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection.The IEEE 802.3 working group and the manufacturers' alliance launched poh-power OVER HDBASET in late 2012.

NC2081PE supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.With the current 4-pair four-wire technology, bilateral power supply can reach 60-100w, which can be achieved by using 5 or 6 types of wire.Application in hd video push feed power to 42 "LED TV sets, to the new us regulation of 2010 42" LED TV power consumption need less than 70W.

Features

• With 8*10/100M PoE downlink ports and 1*10/100M uplink ports;
• The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 120W;
• With 8*10/100M PoE downlink ports and 1*10/100/1000M uplink ports;
• Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
• It supports the PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
• 6KV surge protection, 6KV/8KV ESD protection.

Specifications
