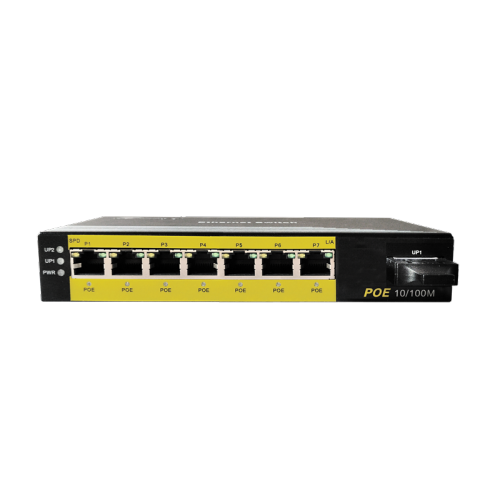

N-net 8 Ports 10/100M Non-managed POE Switch
NT-1700-AF4 fast ethernet POE switch, with built-in 7 ports 10M/100Mbps self-adaptive switch, converting the 7 independent 10Base-T or 100Base-TX twisted pair electrical signal with 100Base-FX optical signal. It extends the network transmission range from 100m, the limit of copper line, to 120Km (single mode full duplex). This 8 Ports Ethernet Poe Switch supports two different types of network connection media, 10/100Base-TX and 100Base-FX. By switching technique and storage & forwarding technique, it realizes the data transmission between two network connection media. It supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode.
Network Switch Features
1. 10/100Mbps auto-sensed, facilitating network upgrade
2. Built-in efficient switching core to implement flow control and reduce broadcast packets
3. Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users
4. Supporting full-duplex and half-duplex and its auto-sensed
5. Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
6. Supporting the transmission of extra-long packets up to 1552 bytes
7. Low power consumption, reliable and stable performance;
8. Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
Specifications
| Item |
8 Ports Poe Ethernet Switch |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode Dual-fiber: 2 km; Single mode Dual-fiber: 20/40/60/80/100/120 km; Single mode Single fiber: 20/40/60/80/100/120 km Category-5 twisted pairs: 100m |
|
Fiber Switch Port |
RJ45 port: Connecting with STP/UTP category-5 twisted pairs Optical port: Multi-mode: SC or ST (50, 62.5/125μm) Single mode: SC or FC (9/125μm) Single mode Single fiber: SC/FC (9/125μm) |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Error rate |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply); FX LINK/ACT (fiber link/action) FDX (FX full duplex), FX100 (fiber rate 100M) |
|
Power supply |
DC5V 1A (external) |
|
Power consumption |
3.5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
110mm(W)×82mm(D)×47mm(H) (external power supply) |
POE Switch 10/100M Application
Small Fast Ethernet POE Switch Package
Poe Switch 8 Ports Series
|
NT-1700 |
10/100Base-T to 100Base-F, 7TP ports, multi-mode, 2km, SC, standalone, external power adaptor |
|
NT-1700S-25 |
10/100Base-T to 100Base-F, 7TP ports,single mode, 25km, SC, standalone, external power adaptor |
|
NT-1700S-40 |
10/100Base-T to 100Base-F, 7TP ports,single mode, 40km, SC, standalone, external power adaptor |
|
NT-1700S-60 |
10/100Base-T to 100Base-F, 7TP ports,single mode, 60km, SC, standalone, external power adaptor |
|
NT-1700S-80 |
10/100Base-T to 100Base-F, 7TP ports,single mode, 80km, SC, standalone,external power adaptorr |
|
NT-1700S-100 |
10/100Base-T to 100Base-F, 7TP ports, single mode, 100km, SC, standalone, external power adaptor |
|
NT-S1700-25 |
10/100Base-T to 100Base-F, 7TP ports, WDM(single fiber bi-direction), 25km, SC, standalone, external power adaptor |
|
NT-S1700-40 |
10/100Base-T to 100Base-F, 7TP ports, WDM(single fiber bi-direction), 40km, SC, standalone, external power adaptor |
|
NT-S1700-60 |
10/100Base-T to 100Base-F, 7TP ports, WDM(single fiber bi-direction), 60km, SC, standalone, external power adaptor |
|
NT-S1700-80 |
10/100Base-T to 100Base-F, 7TP ports, WDM(single fiber bi-direction), 80km, SC, standalone, external power adaptor |
|
NT-S1700-100 |
10/100Base-T to 100Base-F, 7TP ports, WDM(single fiber bi-direction), 100km, SC, standalone, external power adaptor |
