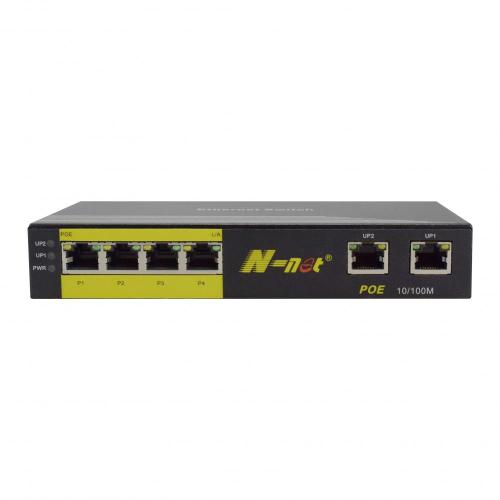

N-net 10/100M Full Ethernet 6 Ports POE Switch
NT-W600-AF4 6 ports fast ethernet POE switch, which is to facilitate high power PoE network applications, features high performance IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at High-Power PoE (Up to 25.5W) capabilities on all ports. By offering reliable switching technology and advanced networking features, the NT-W600-AF4 small Fast Ethernet Poe Switch optimizes the installation and power management of network devices such as wireless access points (AP), VoIP phones, and security video cameras.
Ethernet Switch Features
1. 10/100Mbps auto-sensed, facilitating network upgrade
2. Built-in efficient switching core to implement flow control and reduce broadcast packets
3. Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users
4. Supporting full-duplex and half-duplex and its auto-sensed
5. Supporting Port-isolation and Port-mirror function with DIP switch (Optional)
6. Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
7. Supporting the transmission of extra-long packets up to 1536 bytes
8. 1K MAC Address: Auto-leaning and Auto-aging
9. Supporting Green Ethernet, Low power consumption, reliable and stable performance
10. Supporting electrostatic protection for Ethernet ports(Air:15KV, Contact:8KV)
11. Surge protection for TP port (CM:6KV, DM:4KV)
12. Options for single mode in dual fiber, multi-mode in dual fiber, single mode in single fiber and SFP transceiver
13. Options for SC/LC/FC/ST fiber connector
14. Supporting desk-top mounted and wall mounted
15. Support PoE power supply up to maximum of 30W for single port
10/100M POE Switch Specifications
|
Item |
6 ports Fast Ethernet Switch, 4 POE Outputs |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3x Flow control IEEE802.3af POE IEEE802.3at POE+ |
|
Transmission distance |
Category-5 twisted pairs: 100m |
|
Port |
RJ45 port: Connecting with STP/UTP category-5 twisted pairs |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Switch Architecture |
Store and Forward |
|
MAC address table |
1k auto-learning and aging |
|
Buffer Memory |
512Kbit |
|
Switch Fabric |
1.2Gbps |
|
Switch throughput |
0.89Mpps @ 64bytes |
|
MTU |
1536bytes |
|
LED indicator |
PWR (power supply); L/A (fiber link/action); POE(PSE port is powering a PD) |
|
Power supply |
52VDC @ 1.25A 65W for 802.3af 52VDC @ 2.5A 130W for 802.3at |
|
Power consumption |
MAX. 3.5W |
|
PoE power pins |
RJ45 PIN1 & 2: Pos(+) ; PIN3 & 6: Neg(-)(for costumed 4/5: Pos(+), 7/8: Neg(-)) |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Maintaining temperature |
-40~85ºC |
|
Maintaining humidity |
5%~90% non-condensing |
|
Dimensions |
190mm(W)×86mm(D)×30mm(H) (with ear-hangings) 176mm(W)x86mm(D)x30mm(H) (without ear-hangings) |
Application with Power Over Ethernet Function
Small Fast Ethernet POE Switch Package
