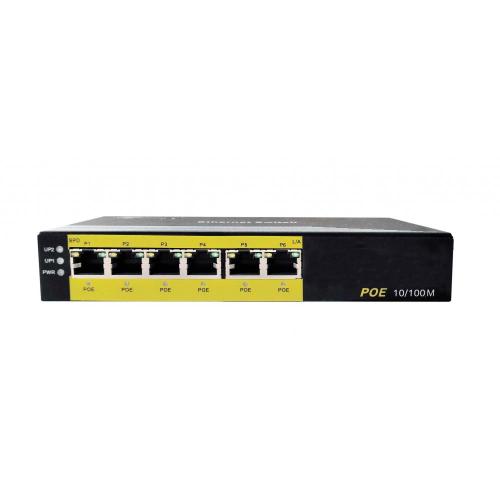

N-net 10/100M 6-Port Ethernet POE switch
NT-W600-AF4 Ethernet POE switch is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and 2 uplink ports. With a total power budget of 65W, this 4 Ports Ethernet POE Switch is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. Through advanced intelligent system, N-net POE switch will stop supplying power for secondary ports, so that the important ports can work well when excessive equipment leads to insufficient power.
Fast Ethernet POE Switch Features
- 10/100Mbps auto-sensed, facilitating network upgrade
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Providing several respective 10M/100Mbps adaptive twisted pair switching ports which implement the backup of electrical ports and the access of multiple users
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting Port-isolation and Port-mirror function with DIP switch (Optional)
- Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
- Supporting the transmission of extra-long packets up to 1536 bytes
- 1K MAC Address: Auto-leaning and Auto-aging
- Supporting Green Ethernet, Low power consumption, reliable and stable performance
- Supporting electrostatic protection for Ethernet ports(Air:15KV, Contact:8KV)
- Surge protection for TP port (CM:6KV, DM:4KV)
- Options for single mode in dual fiber, multi-mode in dual fiber, single mode in single fiber and SFP transceiver
- Options for SC/LC/FC/ST fiber connector
- Supporting desk-top mounted and wall mounted
- Support PoE power supply up to maximum of 30W for single port
| Item |
6 Ports 10/100M POE Switch, 4 POE Outputs |
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3x Flow control IEEE802.3af POE IEEE802.3at POE+ |
|
Transmission distance |
Category-5 twisted pairs: 100m |
|
Port |
RJ45 port: Connecting with STP/UTP category-5 twisted pairs |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Switch Architecture |
Store and Forward |
|
MAC address table |
1k auto-learning and aging |
|
Buffer Memory |
512Kbit |
|
Switch Fabric |
1.2Gbps |
|
Switch throughput |
0.89Mpps @ 64bytes |
|
MTU |
1536bytes |
|
LED indicator |
PWR (power supply); L/A (fiber link/action); POE(PSE port is powering a PD) |
|
Power supply |
52VDC @ 1.25A 65W for 802.3af 52VDC @ 2.5A 130W for 802.3at |
|
Power consumption |
MAX. 3.5W |
|
PoE power pins |
RJ45 PIN1 & 2: Pos(+) ; PIN3 & 6: Neg(-)(for costumed 4/5: Pos(+), 7/8: Neg(-)) |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Maintaining temperature |
-40~85ºC |
|
Maintaining humidity |
5%~90% non-condensing |
|
Dimensions |
190mm(W)×86mm(D)×30mm(H) (with ear-hangings) 176mm(W)x86mm(D)x30mm(H) (without ear-hangings) |
POE Switch 10/100M Application
Small Fast Ethernet POE Switch Details
