10/100Mbps Non-managed 8-port POE Switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China |

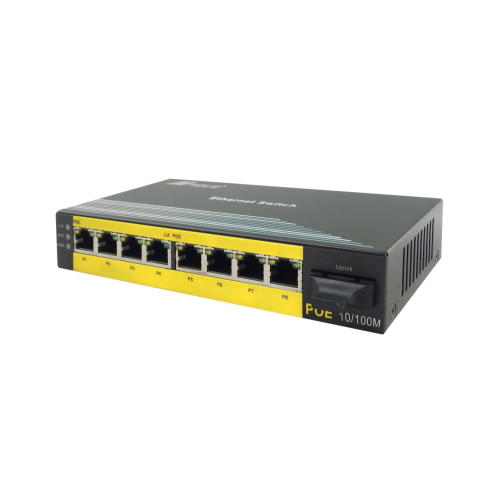

N-net 10/100Mbps Non-managed 8-port Ethernet POE Switch
NT-1800-AF8 8-port Ethernet POE Switch is a 8-port Fast Ethernet POE Switch with one uplink port plus 8 ports of Power over Ethernet capability. Per PoE port is power supply up to 30W. The total PoE power budget is 123.2W. The NT-1800-AF8 10/100M POE Switch is also an efficient and cost-effective solution for SMB, SOHO or other similar fields to deploy the PoE network for the wireless access points, IP-based surveillance cameras or IP phones anywhere easily and efficiently.
8 Ports Ethernet Poe Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 1552 bytes
- 52 DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection
- Support PoE power supply up to maximum of 25.5W
Specifications
| Item |
NT-1800-AF8 POE Switch 10/100M Rate |
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Fiber & Ethernet POE Switch Port |
8 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B 1 optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
1KB |
|
Buffer space |
Built in 512Kb RAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
50,000 hours |
|
LED indicator |
Power Supply : PWR Uplink: L/A, SPD (1~8)UTP Port: PoE, L/A |
|
Power supply |
Power Input Range: 52VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 2.5A 120W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
170.50mm (W)×80.50mm (D)×30.00mm (H) |
|
|
|
8-Port Poe Ethernet Switch Application
8 Ports POE Network Switch Package Details
