POE Switch 8 Ports 10/100M Unmanaged
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,express |
| Port: | China |

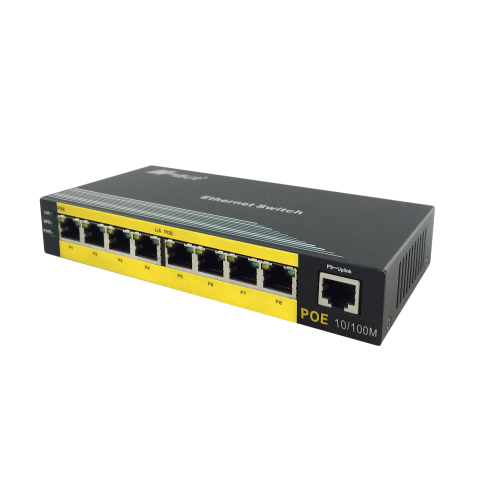

N-net POE Switch 8 ports 10/100M Unmanaged
NT-W900-AF8 8 ports fast ethernet POE Switch, which provides 8 10/100BASE-TX 802.3 af (or 4 10/100BASE-TX 802.3 at) PoE ports and a 10/100BASE-TX uplink port. The power over ethernet capacity enables this 8 Ports Ethernet POE Switch supporting the PD devices to work well under inconvenient power providing situation. As a 10/100M POE switch, NT-W900 is designed for you to easily build a wired network according to your current working environment.
Unmanaged Fast Ethernet POE Switch Features
1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE
3. 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 1552 bytes
7. -20 To 70 ℃ operating temperature to meet a variety of complex environments
8. Copper ports support ESD protection
9. Support PoE power supply up to maximum of 25.5 W
Specifications
|
Item |
NT-W900-AF8 8 Ports POE Switch 10/100M |
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Port |
9 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
1KB |
|
Buffer space |
Built in 512Kb RAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
Power Supply : PWR Uplink: L/A, SPD (1~8)UTP Port: POE, L/A |
|
Power supply |
Power Input Range: 48VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 2.5A 130W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
170.50mm (W)×80.50mm (D)×30.00mm (H) |
|
|
|
8 Ports POE Ethernet Switch Application
Small Fast Ethernet POE Switch Package
