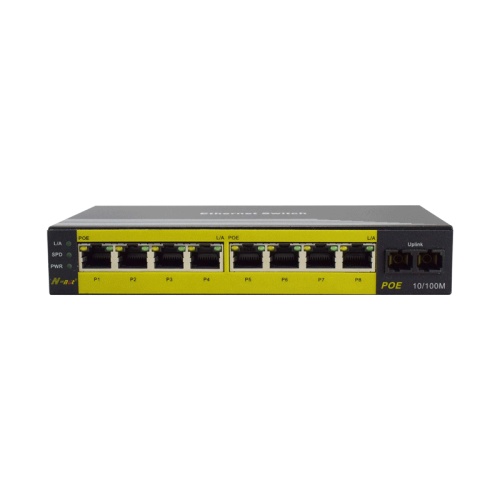

N-net 9 Ports 10/100M Unmanaged Power Over Ethernet Switch
NT-1800-AF8 Power Over Ethernet Switch series are unmanaged Fast Ethernet PoE switch with 8 RJ45 PoE ports. The 8 Ports ethernet POE switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 120/250W, or up to 30W per port. The NT-1800-AF8 10/100M POE switch enables an efficient and cost-effective solution for SMB, SOHO or other similar fields to deploy the PoE network for the wireless access points, IP-based surveillance cameras or IP phones anywhere easily and efficiently.
Fast Ethernet POE Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 1552 bytes
- 52 DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection
- Support PoE power supply up to maximum of 25.5W
Specifications
|
Item |
POE Switch 10/100M with 8 POE Outputs |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Port |
8 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B 1 optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
1KB |
|
Buffer space |
Built in 512Kb RAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
Power Supply : PWR Uplink: L/A, SPD (1~8)UTP Port: PoE, L/A |
|
Power supply |
Power Input Range: 48VDC, Power Interface: DC Power Jack |
|
Power Requirement |
48VDC @ 2.5A 120W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
170.50mm (W)×80.50mm (D)×30.00mm (H) |
|
Weight |
|
8-Port POE Ethernet Switch Application
Small Fast Ethernet POE Switch Package
