Fast Ethernet to UTP Wire Converter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | China,Shenzhen |
N-net Fast Ethernet to UTP Wire
Passive EOC transmission technology is to use the characteristics of cable TV signal transmission in the frequency range of 111 ~ 860MHz, baseband data signal transmission in the frequency range of 0 ~ 20MHz, using two / four conversion, high / low pass filtering and other technologies The data signal is mapped to the home coaxial cable through the combiner and transmitted to the user's home. At the user end, the TV signal is separated from the data signal through the splitter and transmitted to different terminals.

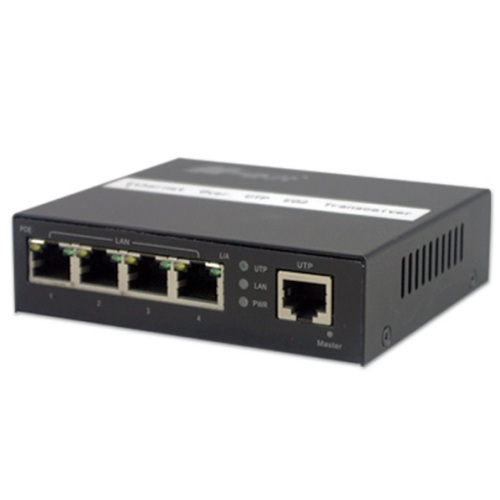

N-net NT-ENU4100 Ethernet and power over UTP cable converter is a 100M Ethernet extender that transfer through UTP wires with 4 RJ45 ports and 1 UTP port. This UTP Ethernet Converter is used in 2 pairs and supporting power over ethernet function PoE (15.4W) and POE+ (25.5W). You will not be worried about the cost in reduilding the wire when you use our products.
UTP Cable Converter Features
- Modulation frequency: 2 MHz-28 MHz
- Modulation method: OFDM
- Encryption: AES128-bit encryption
- Networking: One Master and 7 Slaves
- Protocol:IEEE802.3/u, 10Base-T, 100Base-TX, IEEE802.1Q VLAN, IEEE802.3af/at
- Support Auto-sensation of MDI/ MDIX at Ethernet port, compatible with NIC, switch and HUB etc.
- Support up to 1522Bytes data packet
- Support Store and forward working mode; backpressure on Half-Duplex and flow control Full-Duplex.
- Power supply range: DC 12V-52V;
- Working temperature: -20-70℃
- Support Ethernet ESD protection and EFT
- PoE (15.4W) and POE+ (25.5W) supported
PoE over UTP Cable Extender Application
