4 Ports Ethernet Over UTP Cable Converter

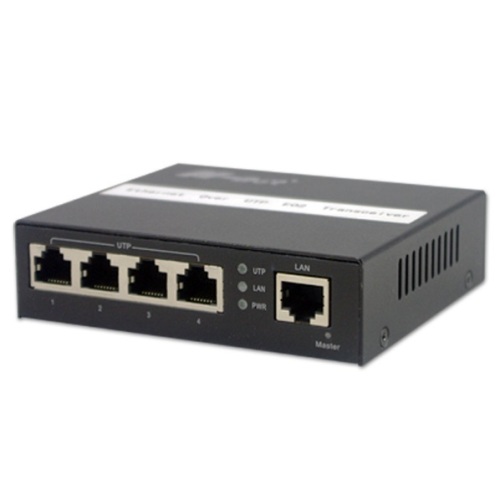

N-net 4 Ports Ethernet Over UTP Cable Converter

EOC (EthernetOverCOAX) can be mainly divided into two types: baseband transmission and modulation transmission application, which can be subdivided into many specific standard / non-standard technologies. The specific classification of EOC technologies common in the Chinese market is as follows.

N-net NT-ENU1400 Ethernet Converter over UTP is based on the two-core networking technology, supporting Ethernet ESD protection, EFT and POE (15.4W) and PoE+ (25.5W). If you have UTP wire in your existing environment, only 2 pairs Ethernet Over UTP Converters can they help you solve the plobrem to rebuild additional wires.

Due to the existence of three types of two-way transformation solutions, the compatibility of EoC equipment with other equipment will become one of the follow-up development priorities.

N-net model NT-ENU1400-AF/ AT series is the EO2 with power over Ethernet function, powering remote Eo2 transceivers and their connected IP network device, default as a master terminal.

PoE over UTP Cable Extender Features

1. Modulation frequency: 2 MHz-28 MHz
2. Modulation method: OFDM
3. Encryption: AES128-bit encryption
4. Networking: One Master and 7 Slaves
5. Protocol:IEEE802.3/u, 10Base-T, 100Base-TX, IEEE802.1Q VLAN, IEEE802.3af/at
6. Support Auto-sensation of MDI/ MDIX at Ethernet port, compatible with NIC, switch and HUB etc.
7. Support up to 1522Bytes data packet
8. Support Store and forward working mode; backpressure on Half-Duplex and flow control Full-Duplex.
9. Power supply range: DC 12V-52V;
10. Working temperature: -20-70℃
11. Support Ethernet ESD protection and EFT
12. PoE (15.4W) and POE+ (25.5W) supported

Ethernet And Power Over UTP Cable Converter Application
