N-net Fast Coax to Ethernet Converter
EOC (Ethernet Over Cable) is an access technology based on the cable television coaxial cable network using the Ethernet protocol.

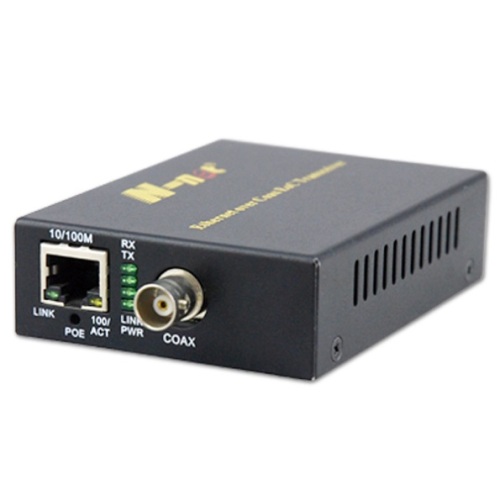

NT-EP1100 fast coax to Ethernet converter features 1 RJ45 port and 1 BNC port with a compact-sized metal housing.
The basic principle is to use a specific medium conversion technology (mainly including impedance conversion, balanced / unbalanced conversion, etc.) to transmit data signals that meet the 802.3 series standard through the coaxial cable to the home.
This Ethernet over coax converter supports 10/100 Base-T Ethernet to be transmitted over coaxial cable. NT-EP1100 coax to Ethernet converter is developed for extending the distance and signal conversion for all kinds of common cables such as telephone line, Ethernet cable, UTP or coax etc. with excellent isolation, thunder prevention and anti-jamming function.
Coax To Ethernet Adapter Features
- Upgrade any legacy CCTV system without the expense of re-cabling, use existing coax for transmission of IP video, swapping analogue cameras for IP/Megapixel models.
- Support 10/100 Base-T Ethernet to be transmitted over coaxial cable.
- One transmitter at remote end can support POE+(30W) to IP camera.
- Up to 14 receivers at central housing can be rack-mounted to 2U chassis (NT-R14), connecting up to 14 cameras.
- Status LEDs indicate power, link connectivity/ activity for RJ45 and BNC ports.
- Sub-industrial design, working temperature range -20~70℃.
- High performance in thunder prevention and anti-jamming.
- Q9 regular BNC video connector (crimp terminal optional)
- Up to 500m over RG59, 350m over SYV75-3(64)
Ethernet And Power Over Coax Converter Application
PoE over Coaxial Extender Order Info
Model
Description
NT-EP1100
Receiver, without PoE function, 1 channel 10/100Mbps IP Ethernet transmission over Coax up to 500m, one coax port to one Ethernet port, input AC110-220V, output DC 5-12V
NT-EP1100-at
Transmitter, with PoE+(30W) to power the IP camera, 1 channel 10/100Mbps IP Ethernet transmission over Coax up to 500m, one coax port to one Ethernet port, input AC110-220V, output DC 48-56V
