Description

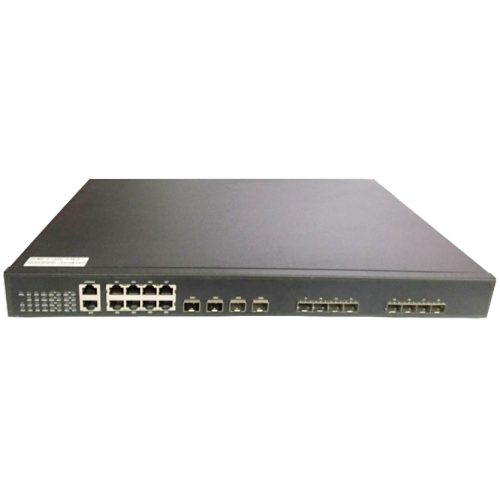

NT-EPN818-01 is a Cassette EPON OLT with the advantage of low power consumption. It is developed by huanet and used in small and medium-sized networking. The height is only 1U for easy installation and space saving. This OLT device provides 8 downlink 1.25G PON ports and 4*10GE SFP port.8 uplink GE RG45 ports. It supports CTC3.1/2.1, ONU automatic identification, auto-discovery, and auto-registration, save much time for testing. NT-EPN818-01 is able to provide broadband, voice, IPTV, CATV and other integrated service access.
Feature
|
Technical items |
Descriptions |
|
|
PON features
|
IEEE 802.3ah EPON China telecom/Unicom GEPON standard 20Km for single fibber Access 64 terminals for single fibber PON Uplink and downlink triple churning encrypted function ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade PON transmit and inspect receiving optical power |
|
|
L2/L3 features |
MAC |
MAC Black Hole Port MAC Limit 16K MAC address |
|
VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
|
Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) ONU remote loop detecting alarm |
|
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
|
Security features |
User security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
|
Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
|
Network security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user`s physical location Plaintext authentication of OSPF.RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
|
Service features |
ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Support packet filtration of L2~L7 even deep to 80 bytes of IP packet head |
|
QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark CAR(Committed Access Rate).Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
|
IPv6 |
SA/DA Classification MLD Snooping |
|
|
Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM PIM-SMv6.PIM-DMv6.PIM-SSMv6 MLDv2/MLDv2 Snooping |
|
|
Reliability |
Loop protection |
EAPS and GERP (recover-time <50ms) Loopback-detection |
|
Link protection |
FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD |
|
|
Device protection |
VRRP host backup Double fault-tolerant backup of host program and configuration files PON card/fan hot-swappable 1+1 main control panel hot backup 1+1 power hot backup |
|
|
Maintenance |
Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
|
Device management |
Command-line interface(CLI), Console, Telnet and SNMP management System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) NGBN View network management |
|
Package Dimension
Here is package box dimension of 8 ports GEPON OLT for your reference.
size for 8 ports GEPON OLT: 520x450x150mm
Solutions
Ordering Information
|
Product Name |
Uplink SFP |
Downlink PON SFP |
Power supply standard |
|
NT-EPN818-01A (1 console,,8 downlink 1.25G PON ports, 8 uplink GE RJ45ports,4*10GE SFP+ port) |
0= No uplink SFP N=N copper transceiver with RJ45 port (1≤N≤8) M=M SFP transceiver with SC port (1≤M≤8)
|
1=1 PON SFP 2=2 PON SFP 3= 3 PON SFP 4= 4 PON SFP 5=5 PON SFP 6=6 PON SFP 7=7 PON SFP 8=8 PON SFP |
1= Chinese Standard 2= European Standard |
