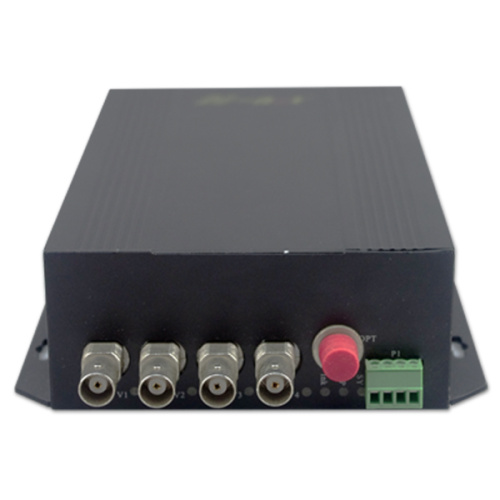

4 video 1 data analog video converter
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pc/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |
Applications
CCTV networks
Video converter covers various video format conversion tools, such as: 3GP video format converter, AVI converter, MP4 conversion tool, FLV conversion software and other video conversion tools.
video conferencing
They not only have an easy-to-operate interface, but also support batch conversion processing to quickly convert various videos to popular media file formats.
Industrial monitoring systems
Distance learning
Features and benefits
Uncompressed 8 bit video digital sampling, High-speed synchronous digital transmission technology
Modular structure design(audio card and data card for optional configuration)
Super optical dynamic range, no adjustment needed
Status indication for power supply, optical signal and video
No electromagnetic interference, radio frequency interference and ground current
Safe transmission guaranteed under poor electromagnetic environmen
BNC video connector
FC optical connector
Video DC recovery
Maximum tolerable link loss for single mode single fiber is 18db
Typical Application:
Technical indicators
Video characteristic
Video channel: 4 channel
Video input/output impedance: BNC75Ω unbalanced interface
Video input/output voltage: Typical peak-peak value 1Vp-p
Video bandwidth: 6.5MHz
Video digital bit width: 8 bit
Differential gain: <1.3% (typical value)
Differential phase: <1.3°(typical value)
SNR: >63dB
Data interface
Number of data channels: 1 channel
Physical interface: The industry standard connecting terminal
RS232 rate: DC-115.2Kbps
RS422/485 rate: DC-115.2Kbps
RS485 distance: 0-1200m
Physical protocol: Transparent support of RS232/485/422/Manchester/Biphase protocol
Optical interface
Physical interface: FC/PC
Fiber type: single-mode fiber, single fiber
Transmission distance: single mode 20Km
Power supply
Input voltage: AC220/DC+5V
Electromagnetic compatibility
Radiation: EN50081-1, EN55022-B, CE, FCC
Magnetic capacity: EN50130-4, EN50028-1
Physical characteristic
Operating temperature: -25°C ~ +75°C
Humidity: 0~95% (no condensation)
Induction: EN50130-5, 1995
Tidal fever: BS2011
Dimension: 174×110×47mm (BNC head and installation edge not included)
