16 slot media converter chassis
- Payment Type:
- L/C, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8517709000 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Yantian |
Overview

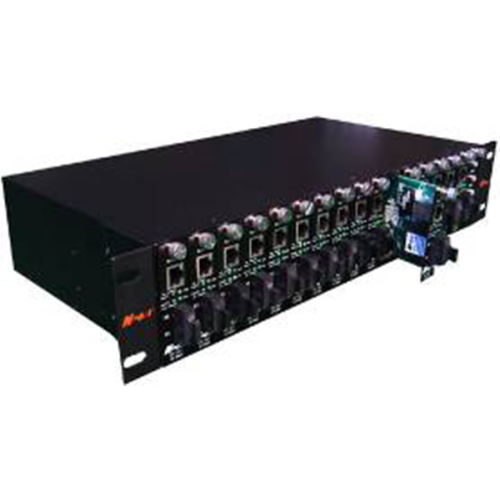

NT-R16D is a kind of cost-effective rack (2U) widely used to provide power for media converter modular type in the equipment room. Different types of card type media converter developed by our company can be inserted into this rack, of which the total slots are up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.
Features
The configuration of active/standby power supply ensures interruptible operation of the system
Provide two power supplies (AC 220V, and DC -48V), enabling the system to work under many operating environments
Supporting simultaneous operation of several module-type media converters at different rates, which greatly improves system adaptability
Each card supports hot swapping
Applicatory module types: NT-1100P series, and NT-3011P series
Specifications
|
Parameter |
Specifications |
|
Number of slots |
16 |
|
Structure |
2U rack |
|
Power input |
AC Voltage: AC 100~265V; frequency: 50/60 Hz, max 1.2A |
|
|
DC voltage: DC-36~72V |
|
Power output |
DC5V 12A |
|
Ripple |
≤20mv |
|
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
|
LED indication |
POWER (power supply) |
|
Max. power consumption |
95W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions of rack |
90mm (H)×423mm (W)×286mm (D)(excl. suspension loop) |
Application
Order Information
|
NT-R16D-2-A |
16 slots rack with dual power supply AC 100~265V, 19''2U, for media converter card |
|
NT-R16D-2-D |
16 slots rack with dual power supply DC-48V, 19''2U, for media converter card |
|
NT-R16D-2-A/D |
16 slots rack with dual power supply, one AC 100~265V adaptor and one DC-48V adaptor, 19''2U, for media converter card |
