14 slot fiber media converter chassis
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8517709000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Yantian |
Overview

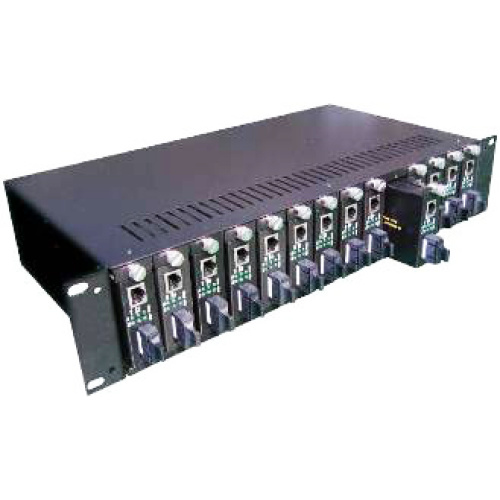

NT-R14 can provide power for media converter standalone type in the equipment room to save costs. Different types of module type media converter developed by our company can be inserted into this rack, whose total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.
Features
The configuration of active/standby power supply ensures uninterruptible operation of the system
Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments
Supporting simultaneous operation of several module-type media converters at different rates, which greatly improves system adaptability
Each card supports hot swapping
Applicatory module types: NT-1100 series, NT-3011 series, NT-1020 series, and NT-2020 series
Specification
|
Parameter |
Specifications |
|
Number of slots |
14 |
|
Structure |
2U rack |
|
Power input |
AC Voltage: AC 100~265V; frequency: 50/60 Hz, max 1.2A |
|
DC voltage: DC -36~72V |
|
|
Power output |
DC5V 12A |
|
Ripple |
≤20 mv |
|
Power configuration |
Single power supply, or Dual power supply for warm backup mode |
|
LED indication |
POWER (power supply) |
|
Max power consumption |
95W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions of rack |
90mm (H)×428mm (W)×245mm (D) (excl. suspension loop) |
Order Information
|
NT-R14-2-A |
14 slots rack with dual power supply AC220V, 19''2U, for media converter standalone |
|
NT-R14-2-D |
14 slots rack with dual power supply DC-48V, 19''2U, for media converter standalone |
|
NT-R14-2-A/D |
14 slots rack with dual power supply, one AC220V adaptor and one DC-48V adaptor, 19''2U, for media converter standalone |
