10G SFP to SFP 3R repeater
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | Shenzhen |
Overview
At the Gb level, designers cannot simply amplify the signal to solve the signal loss problem, because this will increase power consumption and cause the eye diagram to close.

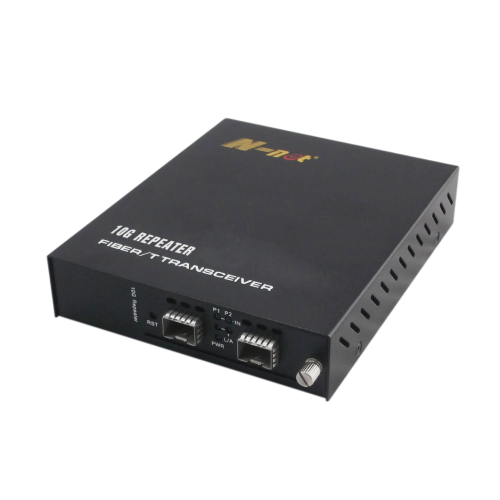

T-XG002/ T-XG020/ T-XG011 series are 10G SFP to SFP 3R repeater, function as fiber mode converter or fiber repeater for long distance transmission. It is a media converter for network backbone (SAN, LAN, MAN) with 1310nm /1550nm/CWDM/DWDM Optical Wavelength conversion, which can be applied in Telecommunication room, R&D laboratory, Data center etc.
Features
3R Repeater
Support Jumbo Frame
Transparent Transmission and very low delay
Support ITUT prescribed DWDM/CWDM wavelength
Support DMI function for SFP+/XFP fiber module
Support PRBS31 Pattern Generator and Checker function
Support Loopback test function
Support hot plugging
Full State Led display
Easy installation
Packaging condition
Specifications
|
Parameter |
Specifications |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
10Gb/s ( 9.95Gb/s-11.35Gb/s ) |
|
Protocols |
IEEE802.3ae |
|
Access Type |
10G LAN/ 10G WAN |
|
Interface Type |
A Type: SFP+ To/From SFP+ B Type: SFP+ To/From XFP C Type: XFP To/From XFP |
|
Transmission Distance |
SFP+ module: Up to 80Km XFP module: Up to 80Km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Network information |
• SFP+ or XFP fiber module detection • Link status detector • Enable/Disabled Loopback test function • Enable/Disable PRBS Generator and checker function • Rate select ( 10Gbase-Lan or Wan ) |
|
Power requirement |
AC 100V~240V or DC -40~50V Power consumption: ≤6W |
|
Work Environment |
Operating Temp: 0~ +50 ℃ Storage Temp: -10~ +70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |
Standalone : 156mm ( W ) × 128mm ( D ) × 32mm ( H ) |
Order Information
|
Model |
Description |
|
T-XG002 |
10G XFP to XFP standalone |
|
T-XG020 |
10G SFP+ to SFP+ standalone |
|
T-XG011 |
10G XFP to SFP+ standalone |
