10G XFP To XFP 3R Repeater
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pc/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |

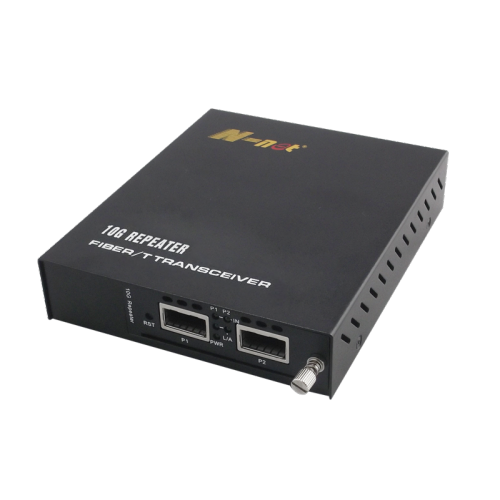

N-net 10G XFP To XFP 3R Repeater
The data transmitted in the channel inevitably produces inter-symbol interference and various noise effects. In the case of high-speed rate, the interference will be more obvious.
NT-XG002 Fiber Media Converter transparently connects 10 Gigabit Ethernet links over multimode or single mode fiber. Each Fiber Optic Converter comes with two pluggable transceiver ports for XFP to XFP, The NT-XG002 additionally supports 10/100/1000/10000 rate conversion.
XFP to XFP conversion is achieved by inserting XFP fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths.
The empty transceiver ports on the NT-XG002 Fiber Optic Media Converter allows for flexible network configurations to meet any requirement using a variety of 10G transceivers supplied by N-net, or other manufacturers.
10G Fiber Media Converter Features
- 3R Repeater
- Support Jumbo Frame
- Transparent Transmission and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support DMI function for SFP+/XFP fiber module
- Support PRBS31 Pattern Generator and Checker function
- Support Loopback test function
- Support hot plugging
- Full State Led display
- Easy installation
Small Fiber Media Converter Packing Condition
Ethernet Converter Specifications
|
Parameter |
Specifications |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
10Gb/s ( 9.95Gb/s-11.35Gb/s ) |
|
Protocols |
IEEE802.3ae |
|
Access Type |
10G LAN/ 10G WAN |
|
Interface Type |
A Type: SFP+ To/From SFP+ B Type: SFP+ To/From XFP C Type: XFP To/From XFP |
|
Transmission Distance |
SFP+ module: Up to 80Km XFP module: Up to 80Km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Network information |
• SFP+ or XFP fiber module detection • Link status detector • Enable/Disabled Loopback test function • Enable/Disable PRBS Generator and checker function • Rate select ( 10Gbase-Lan or Wan ) |
|
Power requirement |
AC 100V~240V or DC -40~50V Power consumption: ≤6W |
|
Work Environment |
Operating Temp: 0~ +50 ℃ Storage Temp: -10~ +70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |
Standalone : 156mm ( W ) × 128mm ( D ) × 32mm ( H ) |
Fiber Converter Order Information
|
Model |
Description |
|
T-XG002 |
10G XFP to XFP standalone |
|
T-XG020 |
10G SFP+ to SFP+ standalone |
|
T-XG011 |
10G XFP to SFP+ standalone |
