fiber media converter 10g

Overview

• In the layout, the intensity of the reflected energy shows a near-end discontinuity.
• One of the major applications is in connecting proprietary transceiver equipment to CWDM or DWDM when these 'colored' optical modules are not available for the proprietary equipment.
• Pre-emphasis technology can pre-distort the transmitted signal by emphasizing the first data symbol after any signal change, eliminating the front-end overshoot and trailing edge tailing of the impulse response in the channel.
• 10G fiber media converter With full duplex wire speed forwarding capability between the 2 fiber media, 10G fiber media converter bring you the best and simplest solution for your 10G conversion between fiber and fiber.

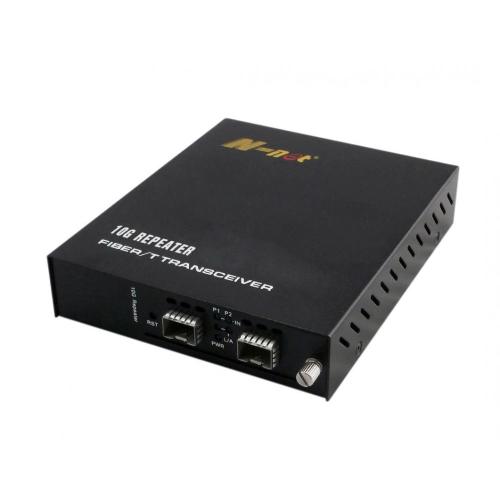

• The NT-XG020 series are managed 10G fiber to fiber 3R repeater and transponders.
• 10G fiber media converter Based on a number of 10 Gigabit Fiber standards, these transponders support XFP to XFP, SFP+ to XFP, and SFP+ to SFP+ fiber connections.
• The transponders are protocol transparent, providing 3R (Re-amplification, Re-shaping and Re-clocking) regeneration between these different optical module types.

Features

1. Multiple protocol supported 10G Ethernet, 10G FC, STM-64, OC-192
2. Protocol transparent 3R fiber media transponder / repeater (Re-amplification, Re-shaping and Re-clocking)
3. Pluggable SFP+ or XFP transceiver
4. 10G ports offering multiservice; 10G transponder and regenerator function
5. Provides superior optics capabilities resulting in extended transport distances for regional application.
6. Extend 10G Ethernet transmission over fiber
7. Useful as a 'Transponder' in CWDM or DWDM systems for 10G Ethernet/Fiber Channel/STM-64
8. Supports Client / Line loop back tests

Specifications

Parameter                                                                                           Specifications

Connector                                                                                     LC, SFP+ and XFP interface( optional)

Traffic Format                                                    OC-192/STM-64 (9.95328Gbps)   10 Gigabit Ethernet LAN(10.3125Gbps)   G.709 OTU2 (10.709225Gbps)

Fiber Channel                                                                               1xFC(1.062 Gbps); 2xFC(2.125 Gbps);4xFC(4.25 Gbps); 8xFC(8.5 Gbps);10xFC(10.51875 Gbps)

Regeneration                                                                                Re-amplification, Re-shaping, Re-timing

Fiber                                                                                           SM 9/125μm; MM 50/125μm or 62.5/125μm

Indications                                                                                  LED (Power, P1 IN, P2 IN, P1 L/A, P2 L/A)

Power Input                                                                                Card : 5VDC , Standalone : AC,DC option

Power Consumption                                                                      <10W

Dimensions                                                                                  Card:112.8 x 77.2 x 23mm ( D x W x H) , standalone: 156 x 128x 32mm ( D x W x H)

Weight                                                                                        Card, 0.2kg

Temperature                                                                                 0 ~ 60°C (Operating), -10 ~ 70°C (Storage)

Humidity                                                                                      5 ~ 95% non-condensing

MTBF                                                                                           50,000 hours
