50w 100w 150W outdoor led floodlight lamp fixtures

50w 100w 150W outdoor led floodlight lamp fixtures

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000pcs
Supply Ability:	5000pcs/month
Payment Type:	L/C,T/T,D/P,Paypal,D/A
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,FAS,CIP,DEQ,DDP,DDU
Certificate:	CE RoHS
HS Code:	9405409000
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

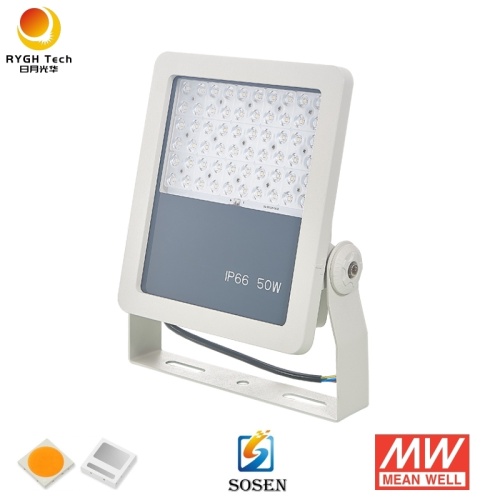

RYGH 50W 100W 150W LED Flood light

RYGH 50W 100W 150W LED Flood light Advantages:

1.Patent private mould, integrated die-casting AL .
2.Glare free lens: 30°/60°/90°/60*140°.
3.High efficiency, 105lm/W.
4.Good heat dissipation

RYGH 50W 100W 150W LED Flood light Application:
* Road
* Tunnel
* Square
* Building

50W LED Flood Light Dimension (Unit: mm)

50w-led-flood-light5

100W LED Flood Light Dimension (Unit: mm)

A: RYGH 50W 100W 150W LED Flood light Technical Parameter

Mechanical Specifications
Part number	RYGH-241-FL-050	RYGH-241-FL-100	RYGH-241-FL-150
Power	50 Watt	100 Watt	150 Watt
Index of Protection	IP66	IP66	IP66
Heatsink	ADC12#Aluminium Alloy	ADC12#Aluminium Alloy	ADC12#Aluminium Alloy
Lens	UV resistant flame retardant PC	UV resistant flame retardant PC	UV resistant flame retardant PC
Glass cover	Ultra white tempered glass	Ultra white tempered glass	Ultra white tempered glass
Product size	284mm277mm188mm	394mm313mm198mm	432mm353mm198mm
Electric specifications
Input voltage	100V~300V　50/60Hz	100V~300V　50/60Hz	100V~300V　50/60Hz
output voltage	36VDC	36VDC	36VDC
output current	1.4A	2.8A	4.2A
Driver efficiency	>90%	>90%	>90%
Power factor	>0.92	>0.92	>0.92
Environmental temperature	－40℃~+50℃	－40℃~+50℃	－40℃~+50℃
Packing	1 unit(s) /ctn	1 unit(s) /ctn	1 unit(s) /ctn
Packing size	330mm300mm130mm	450mm340mm130mm	485mm380mm130mm
Net Weight	3.84kg	5.86kg	6.84kg
Gross Weight	4.32kg	6.48kg	7.66kg
Optoelectronic specifications
lamp luminous flux	5250lm	10500lm	15750lm
Lamp beam angle	30°, 60°, 90°, 60*120°	30°, 60°, 90°, 60*120°	30°, 60°, 90°, 60*120°
CRI	>70	>70	>70
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW

flood-light-details1 flood-light-details2 flood-light-details3 241-led-flood-light02 241-led-flood-light03 flood-light-details4

Warranty

5-year warranty since the date of purchase is offered for all flood Light .
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
